Description
General part information

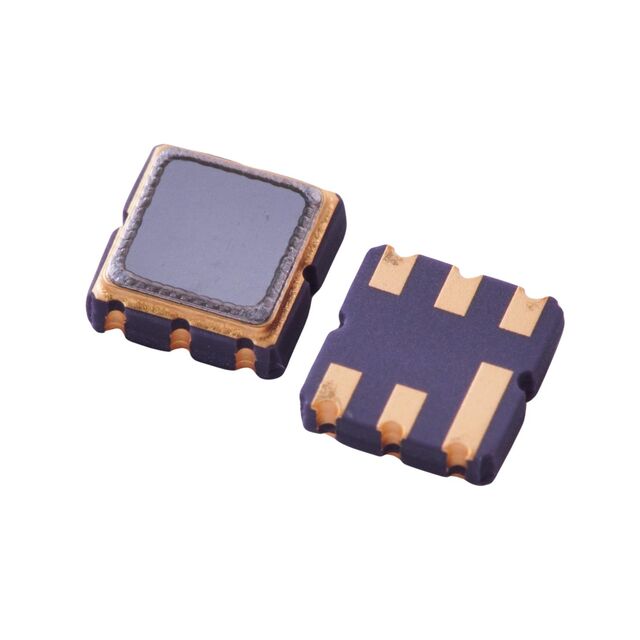

TC0314A
800 MHz SAW Resonator 50 Ohms -40°C ~ 85°C Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | TC0314A |
|---|---|
| Frequency | 800 MHz |
| Frequency Tolerance | 75 kHz |
| Height | 0.059 in |
| Impedance | 50 Ohm |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | No Lead, 6-SMD |
| Size / Dimension Length | 0.15 in |
| Size / Dimension Width | 0.15 in |
| Type | SAW |
