T58M0476M6R3C0300
ObsoleteVishay Dale
CAP, 47ΜF, 6.3V, 20% ROHS COMPLIANT: YES
T58M0476M6R3C0300
ObsoleteVishay Dale
CAP, 47ΜF, 6.3V, 20% ROHS COMPLIANT: YES
Description
General part information
T58M0476M6R3C0300

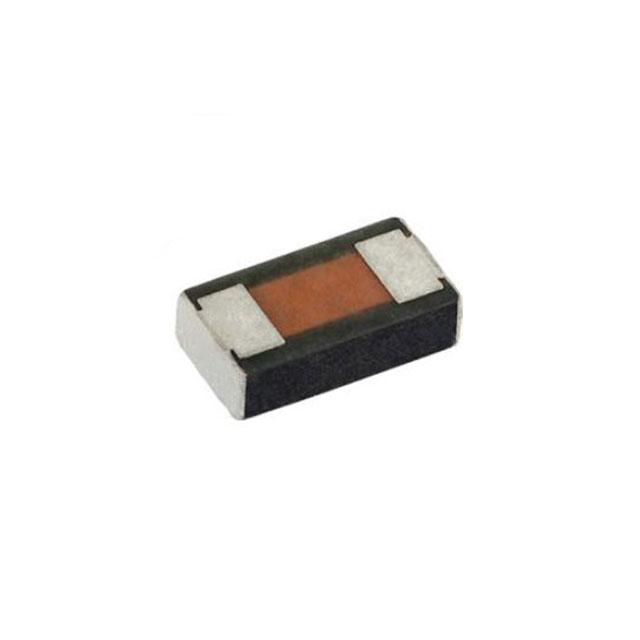

47 µF Molded Tantalum Polymer Capacitor 6.3 V 0603 (1608 Metric) 300mOhm @ 100kHz
Technical Specifications
Parameters and characteristics for this part
| Specification | T58M0476M6R3C0300 |
|---|---|
| Capacitance | 47 µF |
| ESR (Equivalent Series Resistance) | 300 mOhm |
| Features | General Purpose |
| Height - Seated (Max) | 0.039 in |
| Lifetime | 1000 Hrs |
| Manufacturer Size Code | M0 |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension Length | 0.063 in |
| Size / Dimension Width | 0.033 in |
| Tolerance | 20 % |
| Type | Molded |
| Voltage - Rated | 6.3 V |
