T1220240140-000
ActiveTE Connectivity AMP Connectors
H24B-TG-M40
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T1220240140-000
ActiveTE Connectivity AMP Connectors
H24B-TG-M40
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T1220240140-000 | T122 Series |
|---|---|---|
| Connector Type | Hood | Hood |
| Housing Color | Gray | Gray |
| Housing Finish | Powder Coated | Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (2) on Base Bottom | Locking Clip (2) on Base Bottom |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | H24B | H16B, H24B, H32B, H10B |
| Size / Dimension [x] | 4.724 " | 2.874 - 4.724 " |
| Size / Dimension [x] | 120 mm | 73 - 120 mm |
| Size / Dimension [y] | 1.693 in | 1.693 - 3.248 in |
| Size / Dimension [y] | 43 mm | 43 - 82.5 mm |
| Size / Dimension [z] | 60 mm | 60 - 76 mm |
| Size / Dimension [z] | 2.362 " | 2.362 - 2.992 " |
| Style | Top Entry | Dual, Top Entry |
| Thread Size | - | PG16, PG21, M25, M32, M36, PG36, PG13.5, M20, PG42 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.48 | |
| 10 | $ 11.29 | |||
| 100 | $ 9.80 | |||
| 1000 | $ 8.36 | |||
T122 Series
H16B-TG-PG16/PG21
| Part | Housing Finish | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size | Operating Temperature [Max] | Operating Temperature [Min] | Housing Color | Lock Location | Connector Type | Ingress Protection | Housing Material | Style | Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T1220161621-000 | Powder Coated | 60 mm | 93.5 mm | 1.693 in | 2.362 " | 43 mm | 3.681 " | H16B | 125 °C | -40 °C | Gray | Locking Clip (2) on Base Bottom | Hood | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | Dual, Top Entry | PG16, PG21 |
TE Connectivity AMP Connectors T1220240125-000 | Powder Coated | 60 mm | 120 mm | 1.693 in | 2.362 " | 43 mm | 4.724 " | H24B | 125 °C | -40 °C | Gray | Locking Clip (2) on Base Bottom | Hood | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | Top Entry | M25 |
TE Connectivity AMP Connectors T1220240132-000 | Powder Coated | 60 mm | 120 mm | 1.693 in | 2.362 " | 43 mm | 4.724 " | H24B | 125 °C | -40 °C | Gray | Locking Clip (2) on Base Bottom | Hood | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | Top Entry | M32 |
TE Connectivity AMP Connectors T1220320121-000 | Powder Coated | 76 mm | 94 mm | 3.248 in | 2.992 in | 82.5 mm | 3.701 " | H32B | 125 °C | -40 °C | Gray | Locking Clip (2) on Base Bottom | Hood | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | Top Entry | PG21 |
TE Connectivity AMP Connectors T1220240140-000 | Powder Coated | 60 mm | 120 mm | 1.693 in | 2.362 " | 43 mm | 4.724 " | H24B | 125 °C | -40 °C | Gray | Locking Clip (2) on Base Bottom | Hood | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | Top Entry | |
TE Connectivity AMP Connectors T1220160136-000 | Powder Coated | 60 mm | 93.5 mm | 1.693 in | 2.362 " | 43 mm | 3.681 " | H16B | 125 °C | -40 °C | Gray | Locking Clip (2) on Base Bottom | Hood | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | Top Entry | M36 |
TE Connectivity AMP Connectors T1220160121-000 | Powder Coated | 60 mm | 93.5 mm | 1.693 in | 2.362 " | 43 mm | 3.681 " | H16B | 125 °C | -40 °C | Gray | Locking Clip (2) on Base Bottom | Hood | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | Top Entry | PG21 |
TE Connectivity AMP Connectors T1220320136-000 | Powder Coated | 76 mm | 94 mm | 3.248 in | 2.992 in | 82.5 mm | 3.701 " | H32B | 125 °C | -40 °C | Gray | Locking Clip (2) on Base Bottom | Hood | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | Top Entry | PG36 |
TE Connectivity AMP Connectors T1220240121-000 | Powder Coated | 60 mm | 120 mm | 1.693 in | 2.362 " | 43 mm | 4.724 " | H24B | 125 °C | -40 °C | Gray | Locking Clip (2) on Base Bottom | Hood | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | Top Entry | PG21 |
TE Connectivity AMP Connectors T1220320225-000 | Powder Coated | 76 mm | 94 mm | 3.248 in | 2.992 in | 82.5 mm | 3.701 " | H32B | 125 °C | -40 °C | Gray | Locking Clip (2) on Base Bottom | Hood | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | Dual, Top Entry | M25 |
TE Connectivity AMP Connectors T1220100113-000 | Powder Coated | 60 mm | 73 mm | 1.693 in | 2.362 " | 43 mm | 2.874 in | H10B | 125 °C | -40 °C | Gray | Locking Clip (2) on Base Bottom | Hood | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | Top Entry | PG13.5 |
TE Connectivity AMP Connectors T1220320125-000 | Powder Coated | 76 mm | 94 mm | 3.248 in | 2.992 in | 82.5 mm | 3.701 " | H32B | 125 °C | -40 °C | Gray | Locking Clip (2) on Base Bottom | Hood | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | Top Entry | M25 |
TE Connectivity AMP Connectors T1220100120-000 | Powder Coated | 60 mm | 73 mm | 1.693 in | 2.362 " | 43 mm | 2.874 in | H10B | 125 °C | -40 °C | Gray | Locking Clip (2) on Base Bottom | Hood | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | Top Entry | M20 |
TE Connectivity AMP Connectors T1220240116-000 | Powder Coated | 60 mm | 120 mm | 1.693 in | 2.362 " | 43 mm | 4.724 " | H24B | 125 °C | -40 °C | Gray | Locking Clip (2) on Base Bottom | Hood | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | Top Entry | PG16 |
TE Connectivity AMP Connectors T1220162032-000 | Powder Coated | 60 mm | 93.5 mm | 1.693 in | 2.362 " | 43 mm | 3.681 " | H16B | 125 °C | -40 °C | Gray | Locking Clip (2) on Base Bottom | Hood | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | Dual, Top Entry | M20, M32 |
TE Connectivity AMP Connectors T1220100121-000 | Powder Coated | 60 mm | 73 mm | 1.693 in | 2.362 " | 43 mm | 2.874 in | H10B | 125 °C | -40 °C | Gray | Locking Clip (2) on Base Bottom | Hood | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | Top Entry | PG21 |
TE Connectivity AMP Connectors T1220160220-000 | Powder Coated | 60 mm | 93.5 mm | 1.693 in | 2.362 " | 43 mm | 3.681 " | H16B | 125 °C | -40 °C | Gray | Locking Clip (2) on Base Bottom | Hood | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | Dual, Top Entry | M20 |
TE Connectivity AMP Connectors T1220100220-000 | Powder Coated | 60 mm | 73 mm | 1.693 in | 2.362 " | 43 mm | 2.874 in | H10B | 125 °C | -40 °C | Gray | Locking Clip (2) on Base Bottom | Hood | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | Dual, Top Entry | M20 |
TE Connectivity AMP Connectors T1220320142-000 | Powder Coated | 76 mm | 94 mm | 3.248 in | 2.992 in | 82.5 mm | 3.701 " | H32B | 125 °C | -40 °C | Gray | Locking Clip (2) on Base Bottom | Hood | IP65 - Dust Tight, Water Resistant | Aluminum Alloy, Die Cast | Top Entry | PG42 |
Description
General part information
T122 Series

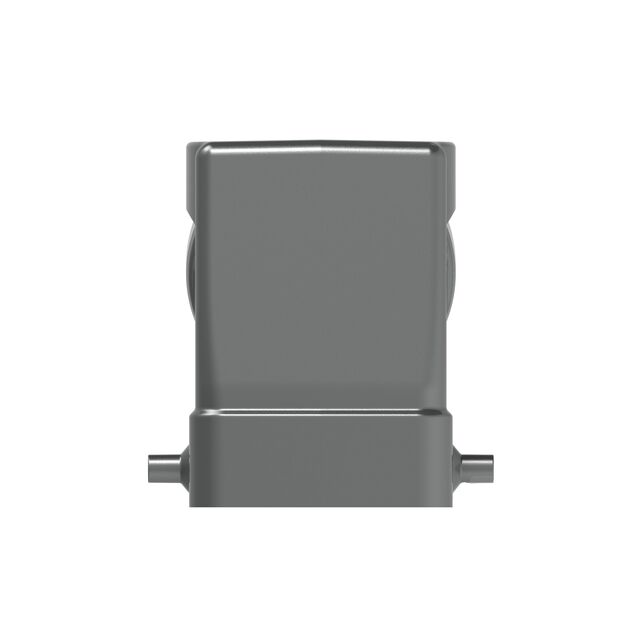

Hood Connector Top Entry M40 H24B IP65 - Dust Tight, Water Resistant
