HES.1M.305.XLDP

Active

LEMO

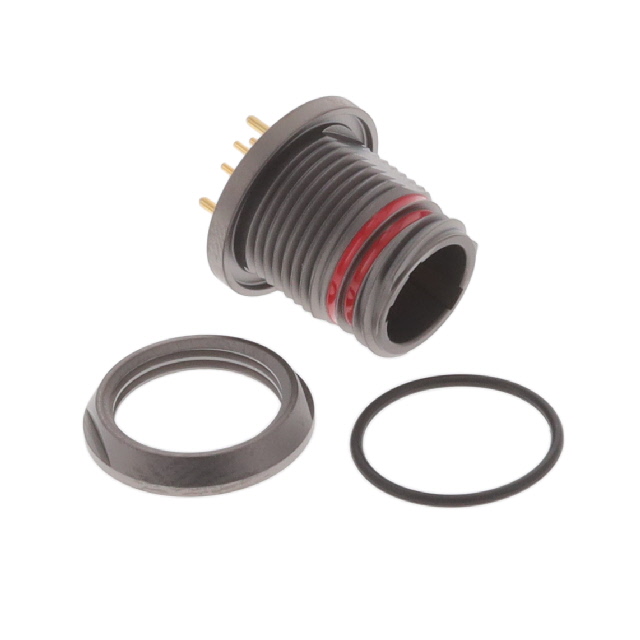

CONN RCPT MALE 5POS GOLD SOLDER

Search across all available documentation for this part.

Active

LEMO

CONN RCPT MALE 5POS GOLD SOLDER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Male Pins Solder

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	HES.1M.305.XLDP	HES.1M Series

Applications	Military, Aerospace, Automotive, Aviation	Military, Aerospace, Automotive, Aviation
Color	Gray	Gray
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Brass	Brass
Current Rating (Amps)	9 A	5 - 9 A
Features	Potted	Potted
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	-	8
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Orientation	S	S
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Aluminum Alloy	Aluminum Alloy
Shell Size - Insert	305	305 - 308
Shielding	Shielded	Shielded
Termination	Solder	Solder

CONN RCPT MALE 5POS GOLD SOLDER

Part	Shell Size - Insert	Ingress Protection	Current Rating (Amps)	Mounting Feature	Applications	Shell Finish	Shell Material	Contact Material	Features	Contact Finish - Mating	Termination	Primary Material	Insert Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Color	Shielding	Number of Positions
LEMO HES.1M.305.XLDP	305	IP68 - Dust Tight, Waterproof	9 A	Bulkhead - Front Side Nut	Aerospace, Automotive, Aviation, Military	Nickel	Aluminum Alloy	Brass	Potted	Gold	Solder	Metal	Polyetheretherketone (PEEK)	1 µm	39.4 µin	Panel Mount, Through Hole	S	-20 C	80 C	Male Pins, Receptacle	Gray	Shielded
LEMO HES.1M.308.XLDP	308	IP68 - Dust Tight, Waterproof	5 A	Bulkhead - Front Side Nut	Aerospace, Automotive, Aviation, Military	Nickel	Aluminum Alloy	Brass	Potted	Gold	Solder	Metal	Polyetheretherketone (PEEK)	1 µm	39.4 µin	Panel Mount, Through Hole	S	-20 C	80 C	Male Pins, Receptacle	Gray	Shielded	8
