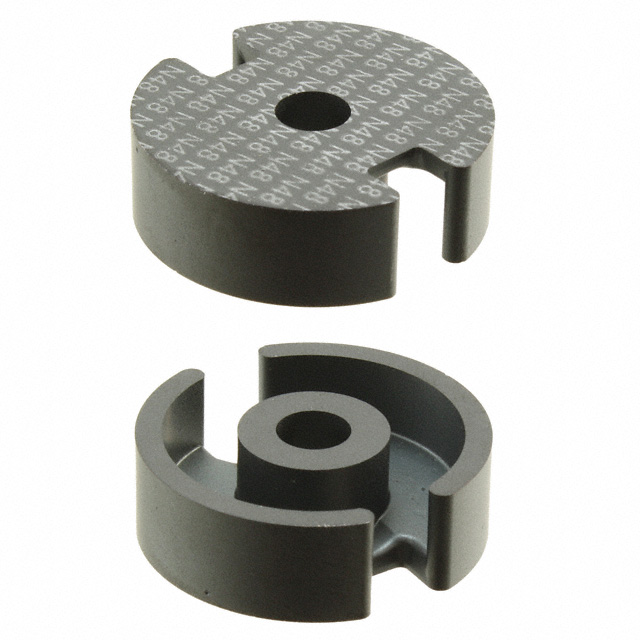

Specification	B65661D0000R087

Core Factor (ΣI/A) mm⁻¹	0.5 mm⁻¹
Core Type	P (Pot Core)
Diameter	0.866 in
Effective Area (Ae)	63 mm²
Effective Length (le)	31.6 mm
Effective Magnetic Volume (Ve)	1990 mm³
Effective Permeability (µe)	1600
Finish	Uncoated
Gap	Ungapped
Height	0.268 in
Inductance Factor (Al)	4.4 µH
Initial Permeability (µi)	2200
Material	N87
Package Length	22 mm
Package Name	P
Package Width	13 mm
Tolerance (Negative)	20 %
Tolerance (Positive)	30 %
