CX2016SA50000B0NLRG1
ActiveKYOCERA AVX
2.0MM X 1.6MM CRYSTAL 50MHZ 6PF
CX2016SA50000B0NLRG1
ActiveKYOCERA AVX
2.0MM X 1.6MM CRYSTAL 50MHZ 6PF
Description
General part information
CX2016SA50000B0NLRG1

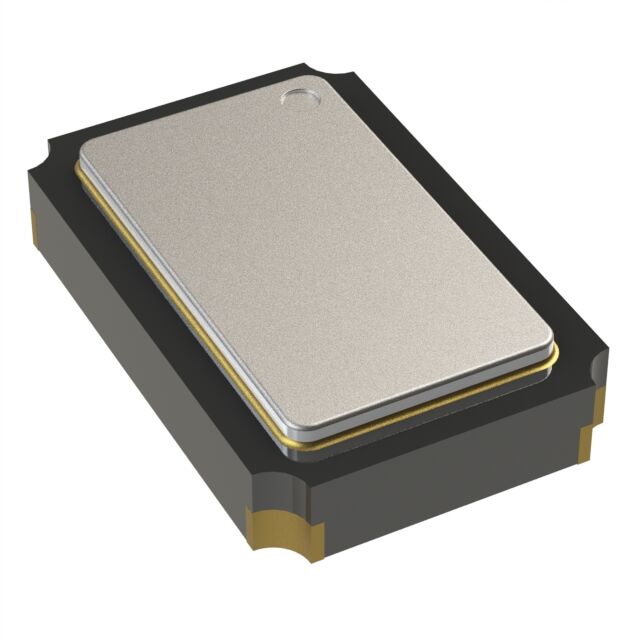

50 MHz ±45ppm Crystal 6pF 50 Ohms 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | CX2016SA50000B0NLRG1 |
|---|---|
| ESR (Equivalent Series Resistance) | 50 Ohm |
| Frequency | 50 MHz |
| Frequency Stability | 40 ppm |
| Frequency Tolerance | 45 ppm |
| Height - Seated (Max) | 0.02 in |
| Load Capacitance | 6 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Package / Case | 4-SMD, No Lead |
| Package Length | 2 mm |
| Package Name | 4-SMD |
| Package Width | 1.6 mm |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.063 in |
| Type | MHz Crystal |
