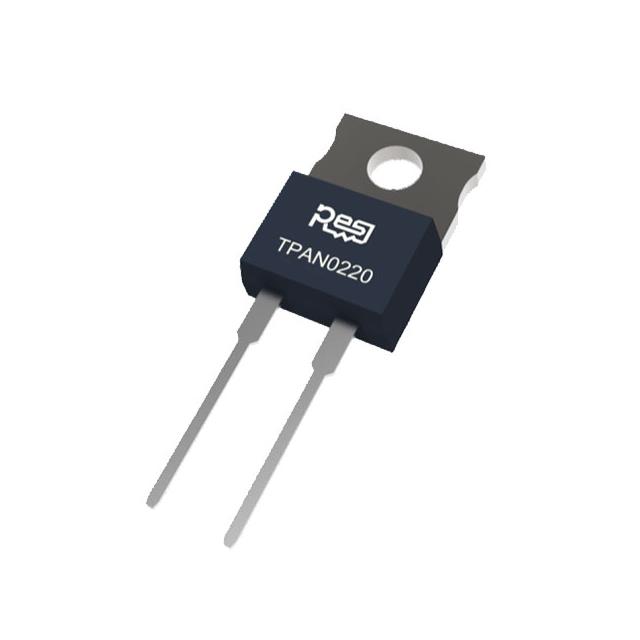

TPAN0220FR820K9
ActiveC&B Eureka Innovations
RES 0.82 OHM 50W 1% T0220
TPAN0220FR820K9
ActiveC&B Eureka Innovations
RES 0.82 OHM 50W 1% T0220
Description
General part information
TPAN0220FR820K9
820 mOhms ±1% 50W Through Hole Resistor TO-220-2 Automotive AEC-Q200, Non-Inductive Thick Film
Technical Specifications
Parameters and characteristics for this part
| Specification | TPAN0220FR820K9 |
|---|---|
| Composition | Thick Film |
| Features | Non-Inductive, Automotive AEC-Q200 |
| Height - Seated (Max) | 0.772 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | TO-220-2 |
| Package Name | TO-220 |
| Power (Watts) | 50 W |
| Resistance | 820 mOhms |
| Size / Dimension Length | 0.398 in |
| Size / Dimension Width | 0.177 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
