P-11AAHL3X2
ObsoletePanasonic Energy
BATTERY PACK NICD 7.2V 1/3AA
P-11AAHL3X2
ObsoletePanasonic Energy
BATTERY PACK NICD 7.2V 1/3AA
Description
General part information
P-11AAHL3X2

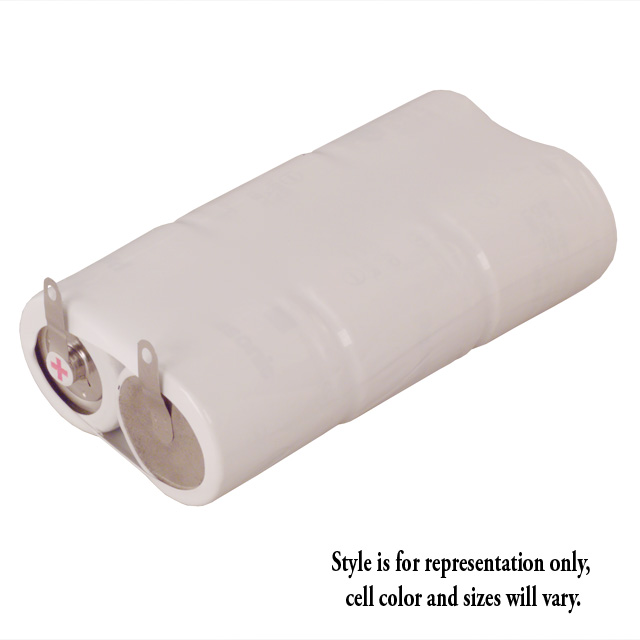

1/3AA 7.2 V Nickel Cadmium Battery Pack
Technical Specifications
Parameters and characteristics for this part
| Specification | P-11AAHL3X2 |
|---|---|
| Battery Cell Size | 1/3AA |
| Battery Chemistry | Nickel Cadmium |
| Capacity (Charge) | 110 mAh |
| Number of Cells | 6 |
| Rechargeability | Yes |
| Size / Dimension Height | 2.07 in |
| Size / Dimension Length | 1.14 in |
| Size / Dimension Width | 0.57 in |
| Structure | Front to Back |
| Structure Cells | 3 |
| Structure Rows | 2 |
| Termination Style | Solder Tab |
| Voltage - Rated | 7.2 VDC |
| Weight | 39.01 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
