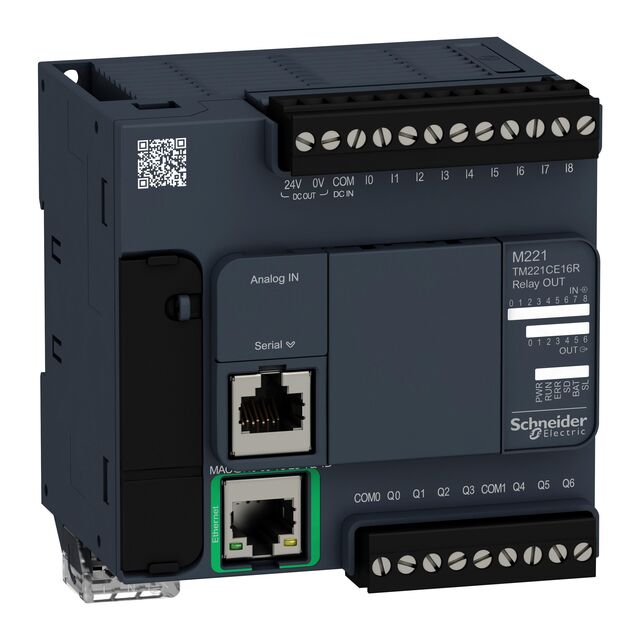

TM221CE16R
ActiveDIGITAL I/O MODULE, 9 I/P, 7 O/P, 240 VAC, MODICON M221 SERIES
TM221CE16R
ActiveDIGITAL I/O MODULE, 9 I/P, 7 O/P, 240 VAC, MODICON M221 SERIES
Description
General part information
TM221CE16R
The TM221CE16R is a 16 input/output Logic Controller with embedded Ethernet offers best-in-class performance. It requires minimal installation and offers tremendous versatility in building the right solution for you and your customers. Connect a simple remote operator panel for instant maintenance and machine visualization. It is small yet powerful logic controller for small machines and your hardwired motion solution needs.
Technical Specifications
Parameters and characteristics for this part
| Specification | TM221CE16R |
|---|---|
| Approval Agency | DNV, LR, CE, ABS, UKCA, EAC, cULus, RCM |
| Communications | USB, Ethernet |
| Display Type | No Display |
| Ingress Protection | IP20 |
| Input Types | Digital, Analog |
| Maximum Expandable Modules | 8 Modules |
| Memory Size | 256 kB |
| Mounting Type | DIN Rail |
| Number of Analog Inputs | 2 |
| Number of Digital Inputs | 9 |
| Number of Inputs | 11 |
| Number of Outputs | 7 |
| Operating Temperature (Max) | 35 °C |
| Operating Temperature (Min) | -10 °C |
| Output Type | Relay |
| Voltage - Supply (Maximum) | 240 VAC |
| Voltage - Supply (Minimum) | 100 VAC |
| Weight | 0.76 lb |
