Description
General part information
LCD-09351

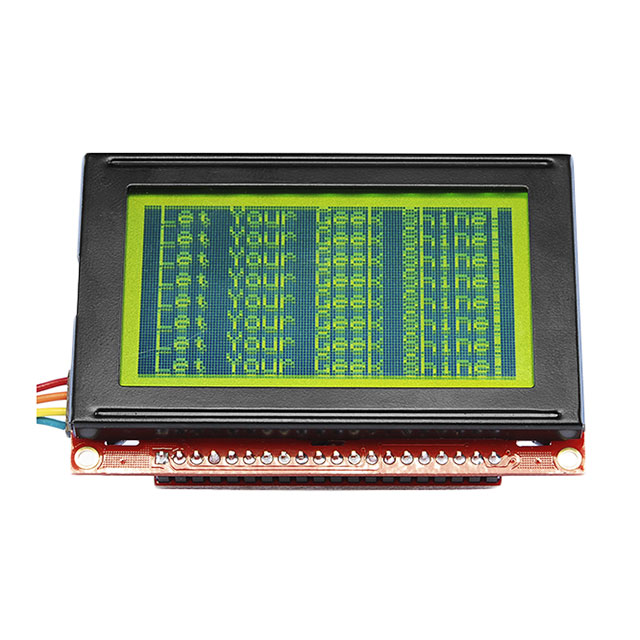

Graphic LCD Display Module Transflective Blue STN - Super-Twisted Nematic Serial 128 x 64
Technical Specifications
Parameters and characteristics for this part
| Specification | LCD-09351 |
|---|---|
| Background Color | Yellow, Green |
| Backlight | LED |
| Display Mode | Transflective |
| Display Type | STN - Super-Twisted Nematic |
| Dot Pitch Height | 0.43 mm |
| Dot Pitch Width | 0.43 mm |
| Dot Pixels (Horizontal) | 128 pixels |
| Dot Pixels (Vertical) | 64 pixels |
| Dot Size Height | 0.39 mm |
| Dot Size Width | 0.39 mm |
| Graphics Color | Blue |
| Interface | Serial |
| Viewing Area Height | 32.5 mm |
| Viewing Area Width | 60 mm |
