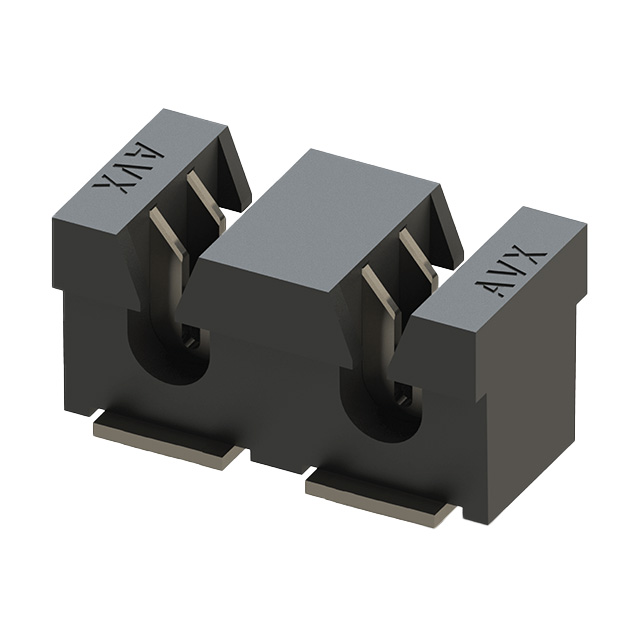

009176002011806
ActiveKYOCERA AVX
2 POSITION 20 AWG STANDARD IDC C
009176002011806
ActiveKYOCERA AVX
2 POSITION 20 AWG STANDARD IDC C
Description
General part information
009176002011806
20 AWG SSL Contact, IDC Solder Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 009176002011806 |
|---|---|
| Connector Type | Contact, IDC |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Current Rating (Per Contact) | 10 A |
| Housing Color | Black |
| Housing Material | PA46, Polyamide, Nylon 4/6 |
| Mating Cycles | 3 cycles |
| Mounting Type | Surface Mount |
| Number of Positions | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.157 in |
| Style | Cable/Wire, Board |
| Termination | Solder |
| Voltage Rating | 300 VAC/DC |
| Wire Gauge | 20 AWG |
