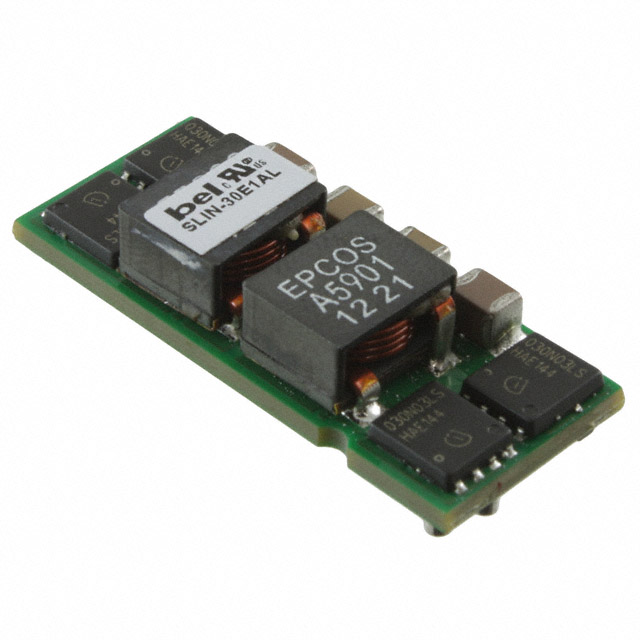

SLIN-30E1ALG
ActiveBel Fuse Inc.
DC DC CONVERTER 0.8-2.75V 83W
SLIN-30E1ALG
ActiveBel Fuse Inc.
DC DC CONVERTER 0.8-2.75V 83W
Description
General part information
SLIN-30E1ALG
Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 2.75V 30A 6V - 14V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | SLIN-30E1ALG |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Enable, Active Low |
| Current - Output (Max) | 30 A |
| Efficiency | 91.8 % |
| Features | Remote On/Off, OTP, OCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Module |
| Power (Watts) | 83 W |
| Size / Dimension Height | 0.39 in |
| Size / Dimension Length | 1.3 in |
| Size / Dimension Width | 0.53 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) | 14 V |
| Voltage - Input (Min) | 6 V |
| Voltage - Output 1 (Max) | 2.75 V |
| Voltage - Output 1 (Min) | 800 mV |
