IRF7201TRPBFXTMA1

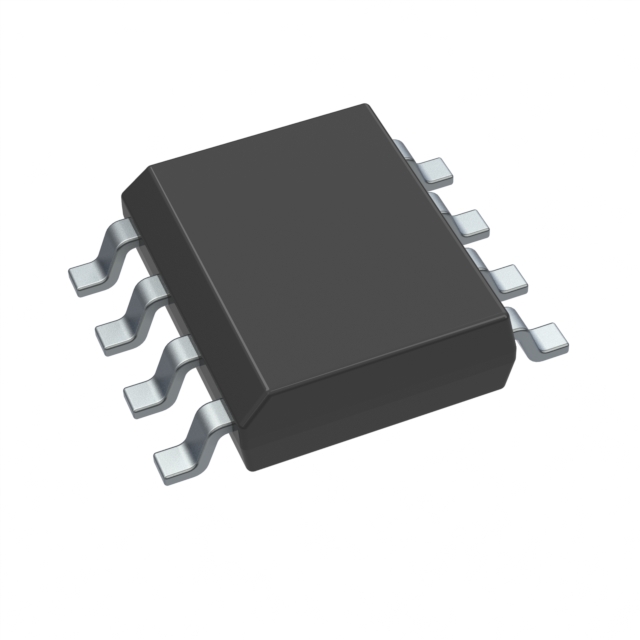

N-Channel 30 V 7.3A (Tc) 2.5W (Tc) Surface Mount PG-DSO-8-902
Technical Specifications
Parameters and characteristics for this part
| Specification | IRF7201TRPBFXTMA1 |
|---|---|
| Current - Continuous Drain (Id) (Tc) | 7.3 A |
| Drain to Source Voltage (Vdss) | 30 V |
| Drive Voltage (Max Rds On) | 4.5 V |
| Drive Voltage (Min Rds On) | 10 V |
| FET Type | N-Channel |
| Gate Charge (Max) | 28 nC |
| Input Capacitance (Ciss) (Max) | 550 pF |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package Length | 0.154 in |
| Package Name | PG-DSO-8-902, 8-SOIC |
| Package Width | 3.9 mm |
| Power Dissipation (Max) | 2.5 W |
| Rds On (Max) | 30 mOhm |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) | 1 V |
