9001KS12B

9001KS12B

Active
SCHNEIDER ELECTRIC

ROTARY SWITCH, 2 POSITION, HARMONY SERIES

Find alt
9001KS12B

9001KS12B

Active
SCHNEIDER ELECTRIC

ROTARY SWITCH, 2 POSITION, HARMONY SERIES

Find alt

Description

General part information

9001KS12B

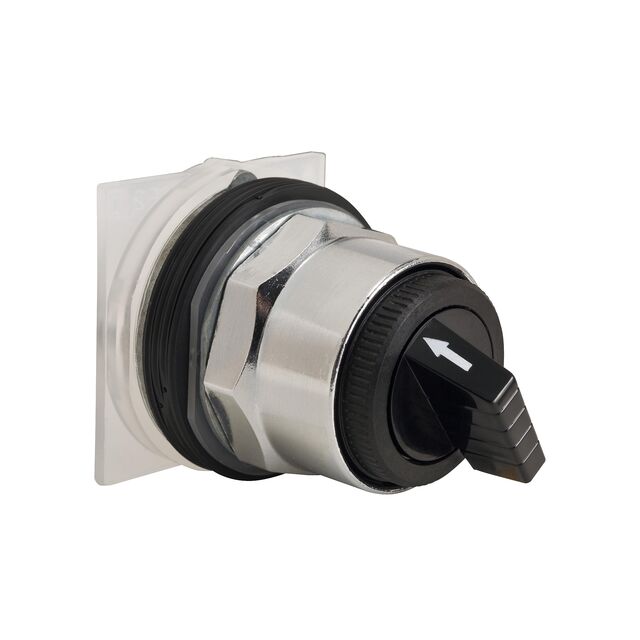

9001KS12B is a harmony 9001K, head for the selector switch. It is a black head for the selector switch and is a separate component of the range of control and signaling units. It has a chromium-plated metal bezel. It is supplied with a black handle. It features 2 maintained positions. The 30mm harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, and automobile manufacturing. It is UL listed and CSA certified.

Technical Specifications

Parameters and characteristics for this part

Specification9001KS12B
Actuator TypeSelector
Compatible SeriesHarmony 9001K, Schneider
IlluminationNon-Illuminated
Panel Cutout Dimension30 mm
Panel Cutout ShapeRound
RequiresContact Block(s)
TypeMaintained
