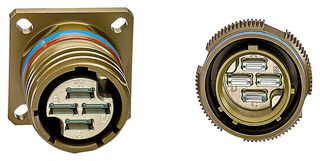

1-2358899-3
ActiveCIRCULAR CONNECTOR, VITA87, MIL-DTL-38999 SERIES III, STRAIGHT PLUG, 4 CONTACTS
1-2358899-3
ActiveCIRCULAR CONNECTOR, VITA87, MIL-DTL-38999 SERIES III, STRAIGHT PLUG, 4 CONTACTS
Description
General part information
1-2358899-3
TE Connectivity (TE)’s VITA 87 Mil Circular 38999 Fiber Optic Interconnect product line offers a much higher density Mil circular fiber optics option that is more aligned with industry architecture needs. These new architectures require considerably higher density to fit into industry-standard card slots. These products will also be a part of global VITA and SOSA standards, ensuring supply and enabling customers to confidently design this product into their next-generation systems. VITA 87 fills this need and is a significant improvement over previous offerings.
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2358899-3 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 15 |
| Contact Type | Crimp |
| Fastening Type | Threaded |
| Features | Coupling Nut |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 4 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | N (Normal) |
| Position Types | Fiber Optic |
| Primary Material | Metal |
| Shell Finish | Durmalon™ |
| Shell Material | Aluminum |
| Shielding | Unshielded |
| Type | For Female Sockets |
