GX-308M-A-P
ActivePanasonic Industrial Automation Sales
SENSOR M8 THRD SHLD PNP NO
GX-308M-A-P
ActivePanasonic Industrial Automation Sales
SENSOR M8 THRD SHLD PNP NO
Description
General part information
GX-308M-A-P

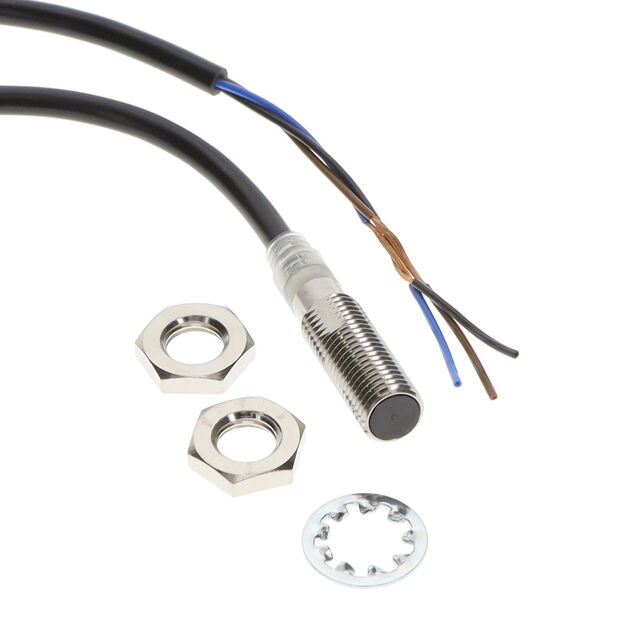

Inductive Proximity Sensor 0.047" (1.2mm) IP67, IP67G, IP69K Cylinder, Threaded - M8
Technical Specifications
Parameters and characteristics for this part
| Specification | GX-308M-A-P |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67G, IP69K, IP67 |
| Material - Body | Stainless Steel |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | PNP-NO, 3-Wire |
| Package / Case | Cylinder, Threaded - M8 |
| Response Frequency | 2 kHz |
| Sensing Distance | 0.047 " |
| Sensor Type | Inductive |
| Shielding | Shielded |
| Termination Style | Cable Leads |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
