61-04-1015-PAD60
ActiveParker Chomerics
THERM-A-GAP PAD60 6.0 W/M-K GAP
61-04-1015-PAD60
ActiveParker Chomerics
THERM-A-GAP PAD60 6.0 W/M-K GAP
Description
General part information
61-04-1015-PAD60

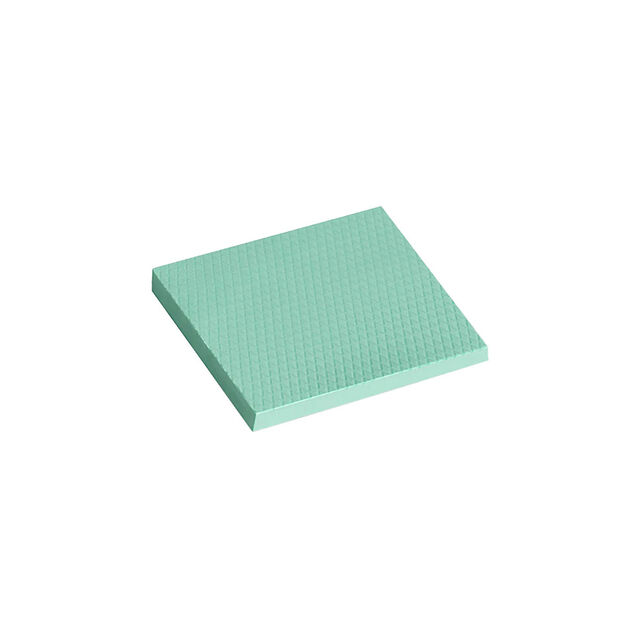

Thermal Pad Green 381.00mm x 254.00mm Rectangular
Technical Specifications
Parameters and characteristics for this part
| Specification | 61-04-1015-PAD60 |
|---|---|
| Color | Green |
| Outline Length | 381 mm |
| Outline Width | 254 mm |
| Shape | Rectangular |
| Shelf Life | 36 Months |
| Shelf Life Start | Date of Shipment |
| Storage/Refrigeration Temperature (Maximum) | 90 °F |
| Storage/Refrigeration Temperature (Minimum) | 50 °F |
| Thermal Conductivity | 6 W/m-K |
| Thermal Resistivity | 0.28 °C/W |
| Thickness | 0.04 in |
| Type | Gap Filler Pad, Sheet |
| Usage | Thermally Conductive |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
