1930001-1
ActiveTE Connectivity AMP Connectors

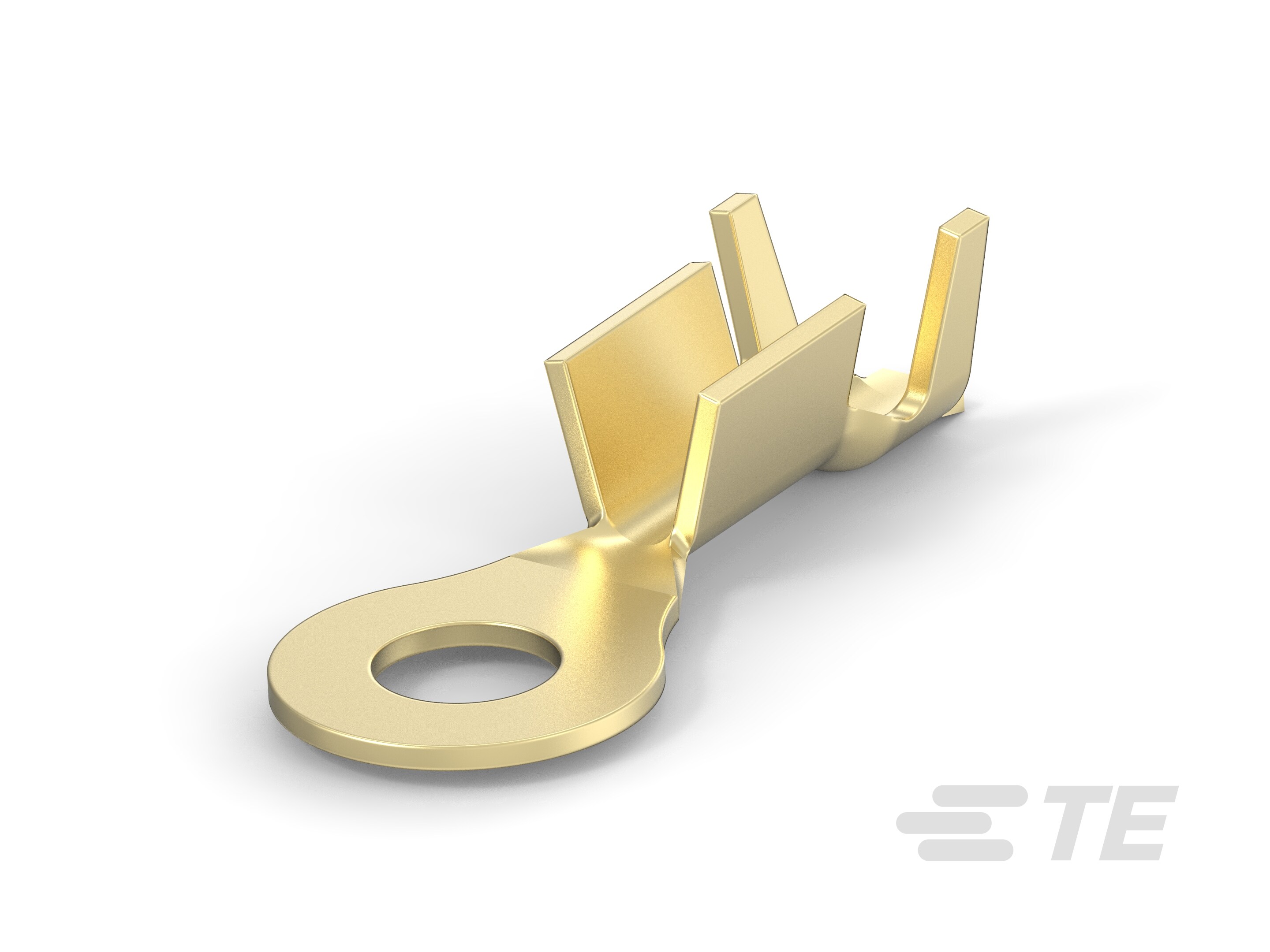

AMPLIVAR, (M3.5) RING TONGUE
1930001-1
ActiveTE Connectivity AMP Connectors
AMPLIVAR, (M3.5) RING TONGUE
Description
General part information
1930001-1
Closed Ring Tongue Terminal, 14 – 10 AWG, #6 / M3.5 Stud, 3.6 mm [.142 in] Stud Diameter, Open Barrel, Straight, Unplated Plating, AMPLIVAR
Technical Specifications
Parameters and characteristics for this part
| Specification | 1930001-1 |
|---|---|
| Contact Material | Copper Alloy |
| Insulation | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 3.5 mm |
| Stud/Tab Size | M3.5 Stud |
| Stud/Tab Type | Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.02 in |
| Wire Gauge (AWG) (Max) | 18 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
