B57164K0103J000
ActiveEPCOS - TDK Electronics
THERMISTOR NTC 10KOHM 4300K DISC
B57164K0103J000
ActiveEPCOS - TDK Electronics
THERMISTOR NTC 10KOHM 4300K DISC
Description
General part information
B57164K0103J000

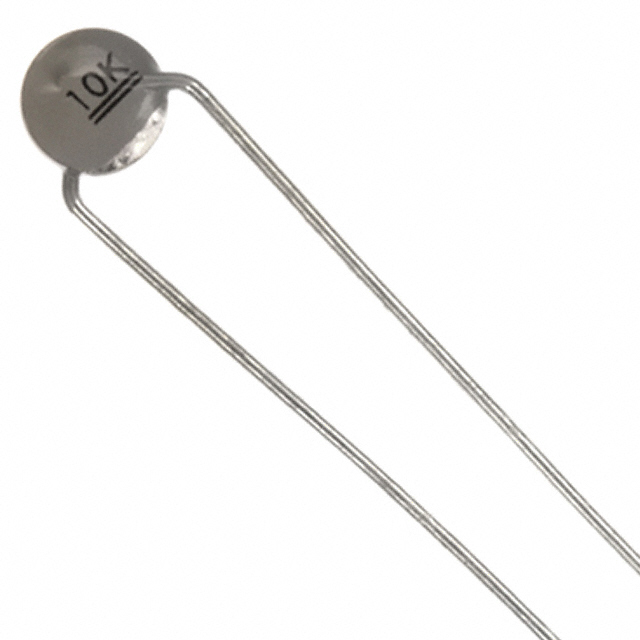

NTC Thermistor 10k Disc, 5.5mm Dia x 5.0mm W
Technical Specifications
Parameters and characteristics for this part
| Specification | B57164K0103J000 |
|---|---|
| B Value Tolerance | 3 % |
| Beta (B25/100) | 4300 K |
| Length - Lead Wire | 1.42 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package Diameter | 5.5 mm |
| Package Name | Disc |
| Package Width | 5 mm |
| Power - Max | 450 mW |
| Resistance (Ohms) | 10 kOhm |
| Resistance Tolerance (%) | 5 % |
