1SNF536011R0000
ActiveTE Connectivity AMP Connectors

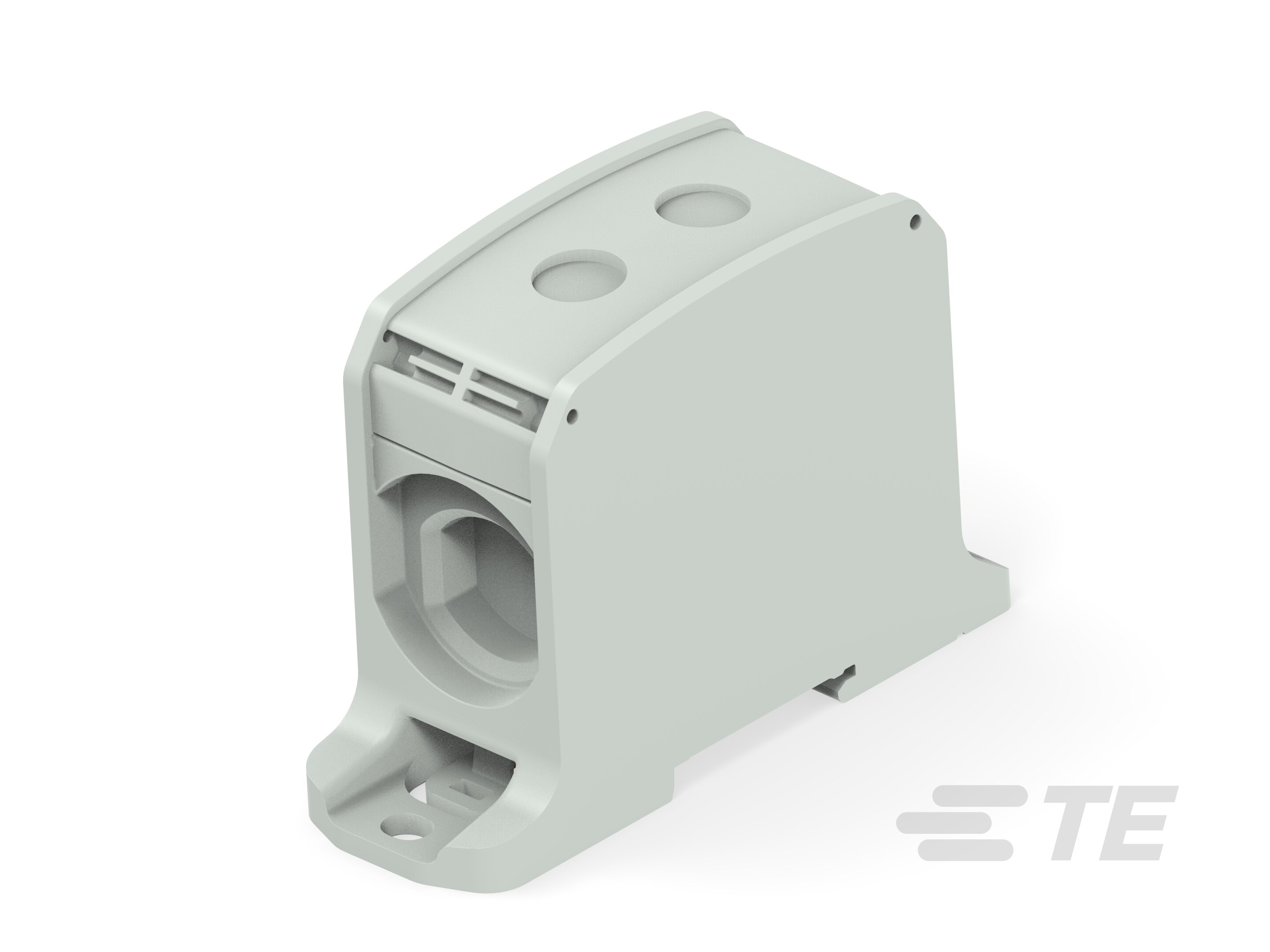

COMPACT POWER TERM BLOCK
1SNF536011R0000
ActiveTE Connectivity AMP Connectors
COMPACT POWER TERM BLOCK
Description
General part information
1SNF536011R0000
1 Pole, 250 A / 310 A Current Rating (UL), 2 Position, DIN Rail, Power Distribution Blocks
Technical Specifications
Parameters and characteristics for this part
| Specification | 1SNF536011R0000 |
|---|---|
| Current Rating | 310 A |
| Line Side Connection Type | Screw Connection |
| Line Side Connections Per Pole | 2 |
| Line Side Wire Cross-sectional Area | 300 MCM |
| Line Side Wire/Stud Designation | AWG, 2/0 |
| Load Side Connection Type | Screw Connection |
| Load Side Connections Per Pole | 2 |
| Load Side Wire/Stud Size (AWG) (Max) | 16 AWG |
| Load Side Wire/Stud Size (AWG) (Min) | 8 AWG |
| Number of Poles | 1 |
| Type | Power Distribution Block |
| Voltage - Rated | 1000 V |
