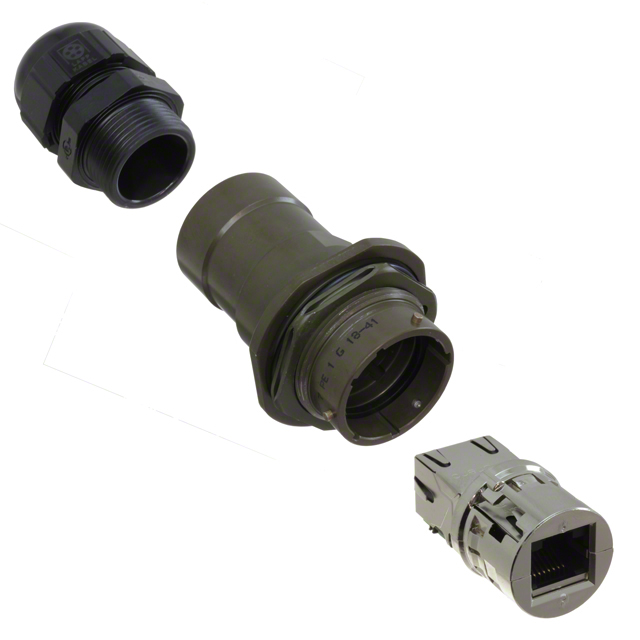

Specification	RJF7PE1G

Convert From (Adapter End)	8p8c (RJ45), Jack
Convert To (Adapter End)	Jack, 8p8c (RJ45)
Features	Circular Threaded Coupling
Finish	Olive Drab Cadmium Plated
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Feature	Front Side Nut
Mounting Type	Bulkhead, Panel Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Ratings	Cat5e
Shell Material	Aluminum
Shielding	Unshielded
Type	Coupler

RJF7PE Series

Part	Connector Type	Features	Cable Type	Length	Style	Mounting Type	Color	Number of Positions	Number of Contacts	Shielding	Operating Temperature (Min)	Operating Temperature (Max)	Ratings	Type	Ingress Protection Description	Ingress Protection IP Rating	Mounting Feature	Finish	Shell Material	Convert From (Adapter End)	Convert To (Adapter End)	Shell Material, Finish

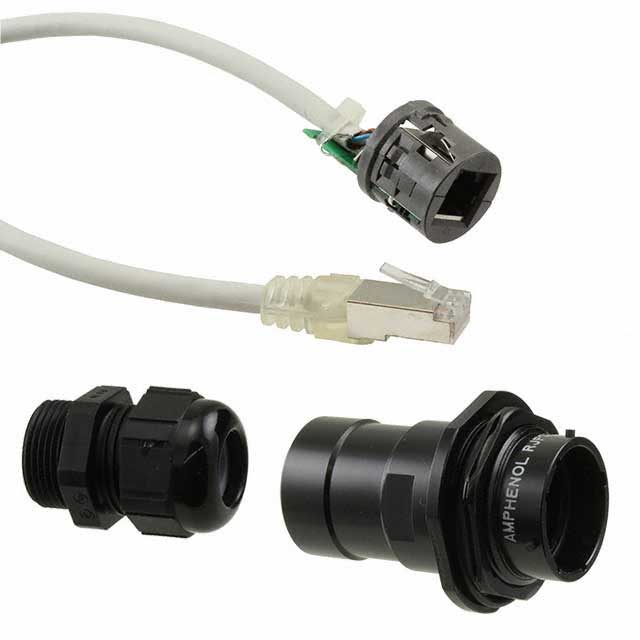

McGill Microwave Systems RJF7PE2B05100BTX	Ethernet Jack to Plug RJ45	Circular Bayonet Coupling Molded Plugs	Round Cable	1.64 ft	Cat5e Industrial Environments - IP68	Bulkhead Panel Mount	Gray	8	8	Shielded
McGill Microwave Systems RJF7PE2G03100BTX	Ethernet Jack to Plug RJ45	Circular Bayonet Coupling Molded Plugs	Round Cable	0.98 ft	Cat5e Industrial Environments - IP68	Bulkhead Panel Mount	Gray	8	8	Shielded
McGill Microwave Systems RJF7PEM2G15100BTX	Ethernet Jack to Plug RJ45	Circular Bayonet Coupling Molded Plugs	Round Cable	4.92 ft	Cat5e Industrial Environments - IP68	Bulkhead Panel Mount	Gray	8	8	Shielded

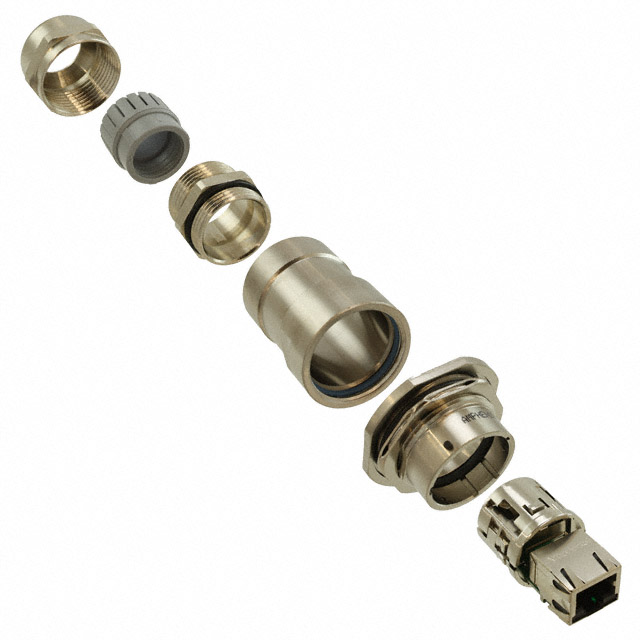

McGill Microwave Systems RJF7PEM1N		Circular Threaded Coupling				Bulkhead Panel Mount				Unshielded	-40 °C	85 °C	Cat5e	Coupler	Dust Tight Waterproof	IP67	Front Side Nut Metal Gland	Nickel Plated	Metal	8p8c (RJ45) Jack	8p8c (RJ45) Jack
McGill Microwave Systems RJF7PE2G10100BTX	Ethernet Jack to Plug RJ45	Circular Bayonet Coupling Molded Plugs	Round Cable	3.28 ft	Cat5e Industrial Environments - IP68	Bulkhead Panel Mount	Gray	8	8	Shielded
McGill Microwave Systems RJF7PE1N		Circular Bayonet Coupling				Bulkhead Panel Mount				Unshielded	-40 °C	85 °C	Cat5e	Coupler	Dust Tight Waterproof	IP67	Front Side Nut	Nickel Plated	Metal	8p8c (RJ45) Jack	8p8c (RJ45) Jack

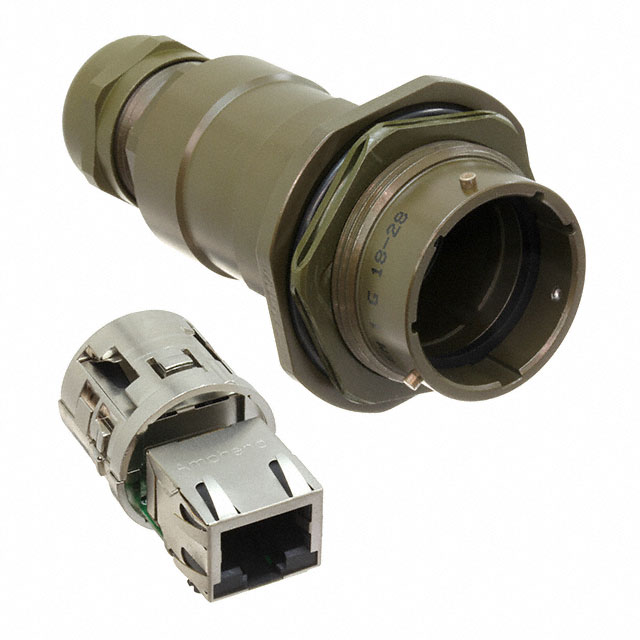

McGill Microwave Systems RJF7PEM1G		Circular Bayonet Coupling				Bulkhead Panel Mount				Unshielded	-40 °C	85 °C	Cat5e	Coupler	Dust Tight Waterproof	IP67	Front Side Nut Metal Gland	Olive Drab Cadmium Plated	Aluminum	8p8c (RJ45) Jack	8p8c (RJ45) Jack
McGill Microwave Systems RJF7PE2B00		Circular Bayonet Coupling				Bulkhead Panel Mount				Shielded	-40 °C	85 °C	Cat5e	Adapter	Dust Tight Waterproof	IP68	Front Side Nut			8p8c (RJ45) Jack	PCB

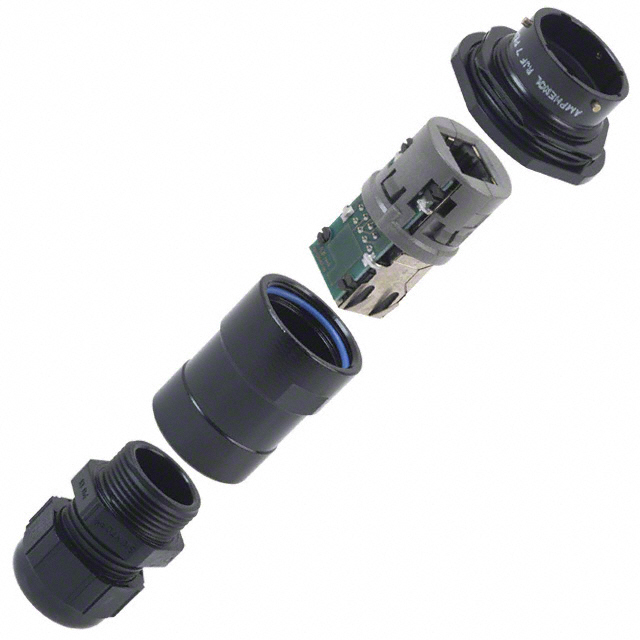

McGill Microwave Systems RJF7PE1B		Circular Threaded Coupling				Bulkhead Panel Mount				Unshielded	-40 °C	85 °C	Cat5e	Coupler	Dust Tight Waterproof	IP67	Front Side Nut			8p8c (RJ45) Jack	8p8c (RJ45) Jack	Metal

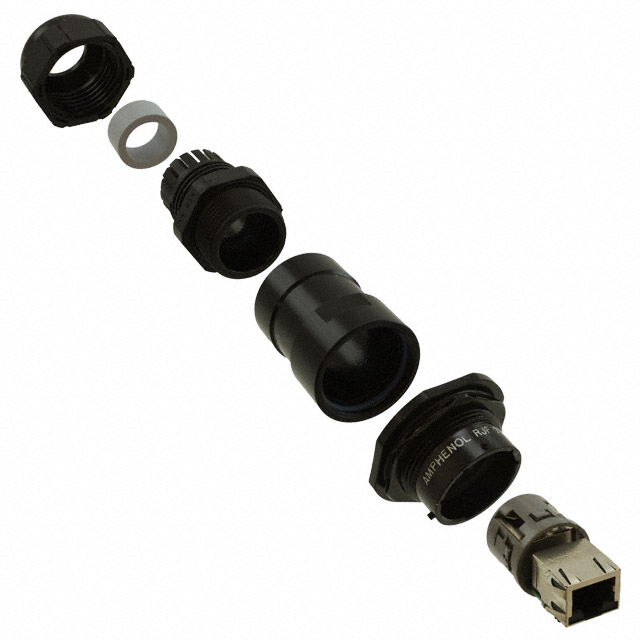

McGill Microwave Systems RJF7PEM1B		Circular Bayonet Coupling				Bulkhead Panel Mount				Unshielded	-40 °C	85 °C	Cat5e	Coupler	Dust Tight Waterproof	IP67	Front Side Nut Metal Gland			8p8c (RJ45) Jack	8p8c (RJ45) Jack	Metal
