474341-E
ActiveTE Connectivity AMP Connectors
IDCTERM 1 I2426 1,10 KA 094 707 0007 J
474341-E
ActiveTE Connectivity AMP Connectors
IDCTERM 1 I2426 1,10 KA 094 707 0007 J
Description
General part information
Insulation Displacement Connectors Closed End Series

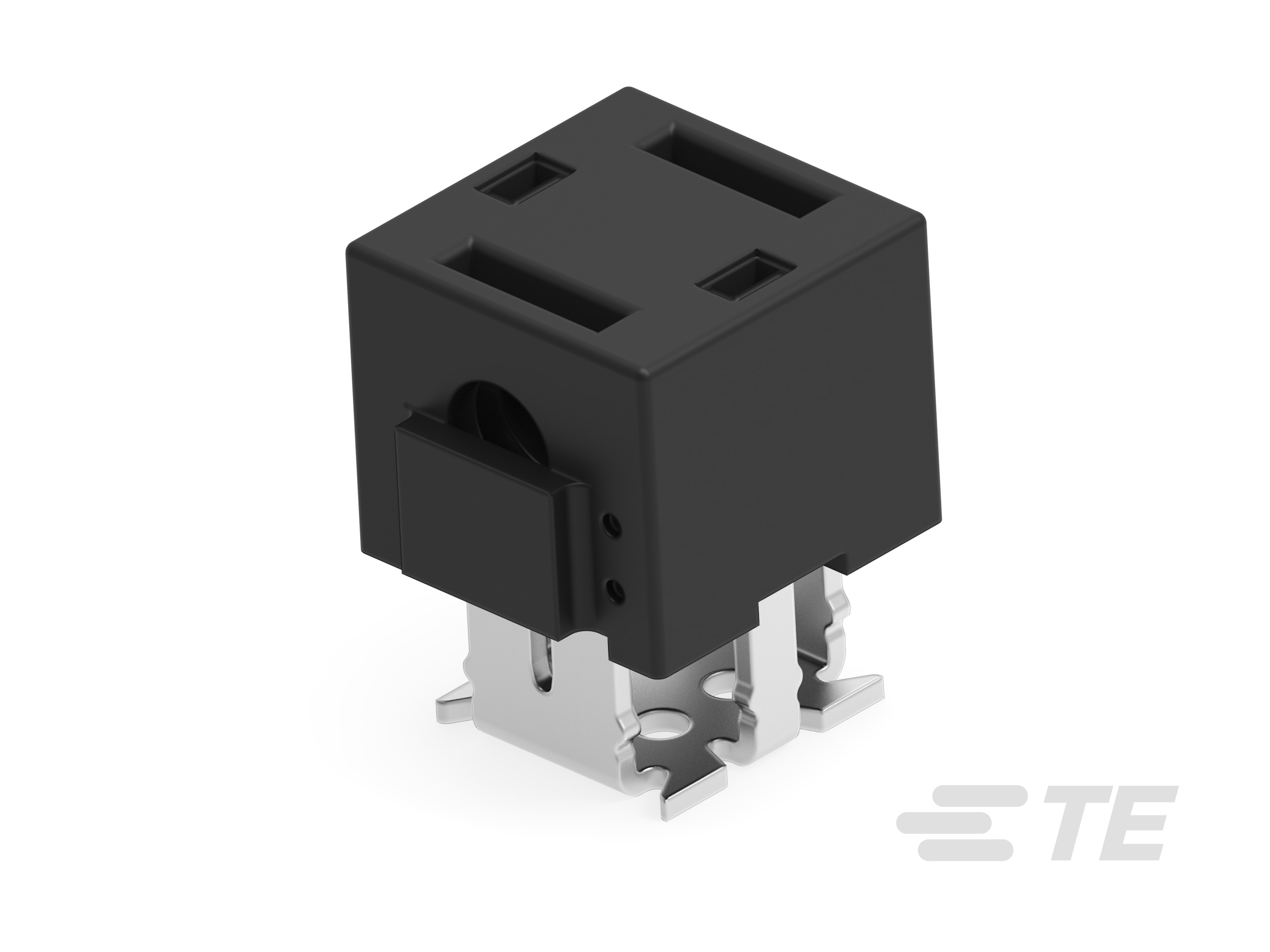

Board-In PCB Mount One-Piece IDC Connector, Right Angle, Wire-to-Board, 1 Position, Discrete Wire, Insulation Displacement Connectors Closed End
Technical Specifications
Parameters and characteristics for this part
| Specification | 474341-E |
|---|---|
| Cable Termination | IDC |
| Color | Black |
| Connector Type | Individual Wires |
| Contact Finish | Tin |
| Features | Closed End |
| Mounting Type | Right Angle, Surface Mount |
| Number of Positions | 1 |
| Number of Rows | 1 |
| Wire Gauge (AWG) (Max) | 26 AWG |
| Wire Gauge (AWG) (Min) | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
