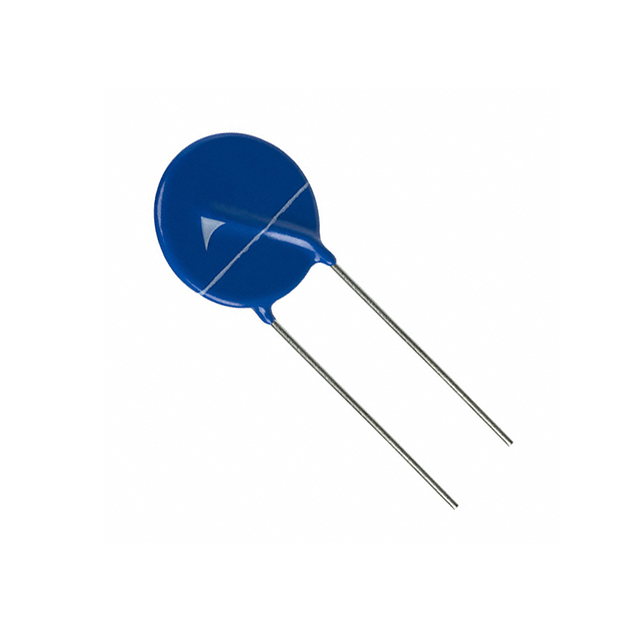

B72220W2461K501
ActiveEPCOS - TDK Electronics
20MM, 460VAC , THERMO-FUSED TYPE
B72220W2461K501
ActiveEPCOS - TDK Electronics
20MM, 460VAC , THERMO-FUSED TYPE
Description
General part information
B72220W2461K501
750 V 10 kA Varistor 1 Circuit Through Hole Disc 23mm 3-Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | B72220W2461K501 |
|---|---|
| Capacitance | 500 pF |
| Current - Surge | 10000 A |
| Energy | 300 J |
| Maximum AC Volts | 460 V |
| Maximum DC Voltage | 615 V |
| Mounting Type | Through Hole |
| Number of Circuits | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Diameter | 23 mm |
| Package Name | Disc |
| Varistor Voltage (Max) | 825 V |
| Varistor Voltage (Min) | 675 V |
| Varistor Voltage (Typ) | 750 V |
