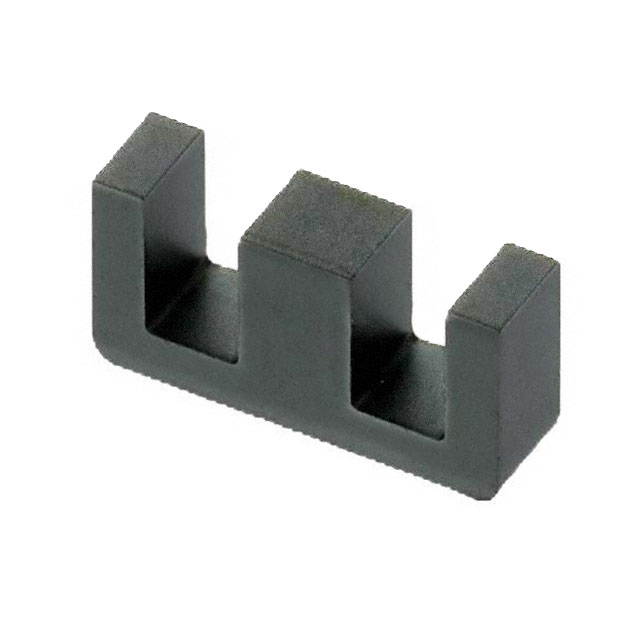

Specification	B66305G0130X187

Core Factor (ΣI/A) mm⁻¹	2.39 mm⁻¹
Core Type	E
Effective Area (Ae)	12.4 mm²
Effective Length (le)	29.6 mm
Effective Magnetic Volume (Ve)	367 mm³
Effective Permeability (µe)	215
Finish	Uncoated
Gap	Gapped
Height	0.256 in
Inductance Factor (Al)	112 nH
Initial Permeability (µi)	2200
Length	0.496 in
Material	N87
Minimum Core Cross Section (Amin) (mm²)	12.2 mm²
Package Height	4 mm
Package Length	13 mm
Package Name	E
Package Width	7 mm
Width	0.146 in
