CS75-B2GA471KYNKA
ActiveTDK Corporation
CAP CER 470PF 300/440VAC
CS75-B2GA471KYNKA
ActiveTDK Corporation
CAP CER 470PF 300/440VAC
Description
General part information
CS75-B2GA471KYNKA

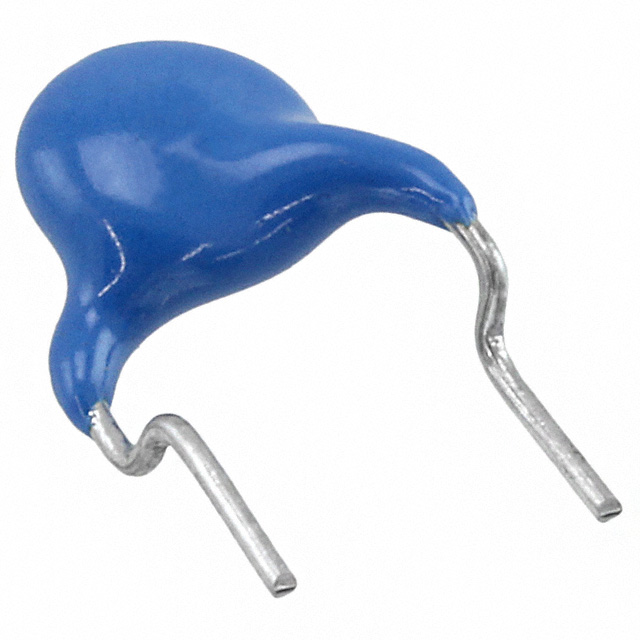

470 pF ±10% 300VAC/440VAC Ceramic Capacitor B Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | CS75-B2GA471KYNKA |
|---|---|
| Applications | Safety |
| Capacitance | 470 pF |
| Features | High Voltage |
| Lead Spacing | 0.295 in |
| Lead Style | Formed Leads - Kinked |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Disc, Radial |
| Ratings | Y2, X1 |
| Size / Dimension Diameter | 0.295 in |
| Temperature Coefficient | B |
| Tolerance | 10 % |
| Voltage - Rated (Option 1) | 300 VAC |
| Voltage - Rated (Option 2) | 440 VAC |
