XXA30B1VM12
ActiveSCHNEIDER ELECTRIC
ULTRASONIC SENSORS XX, ULTRASONI
XXA30B1VM12
ActiveSCHNEIDER ELECTRIC
ULTRASONIC SENSORS XX, ULTRASONI
Description
General part information
XXA30B1VM12

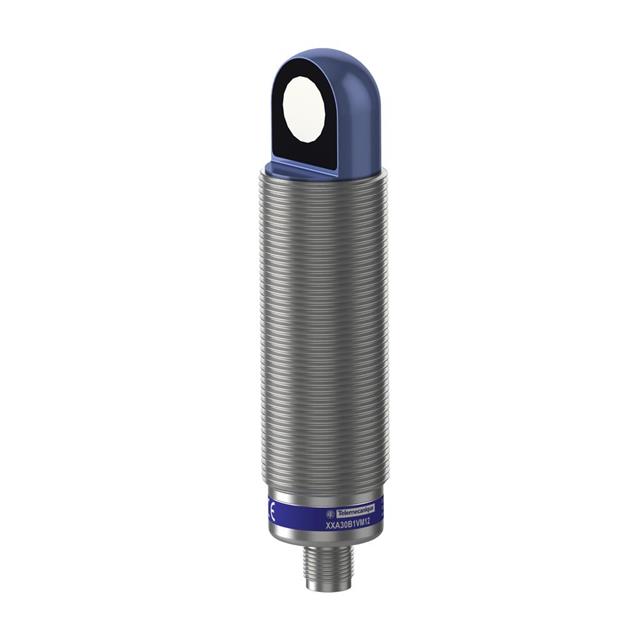

Ultrasonic Proximity Sensor 39.37" (1000mm) IP65, IP67 Cylinder, Threaded - M30
Technical Specifications
Parameters and characteristics for this part
| Specification | XXA30B1VM12 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP65, IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | Analog Voltage |
| Package / Case | Cylinder, Threaded - M30 |
| Sensing Distance | 39.37 " |
| Sensor Type | Ultrasonic |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply | 24 VDC |
