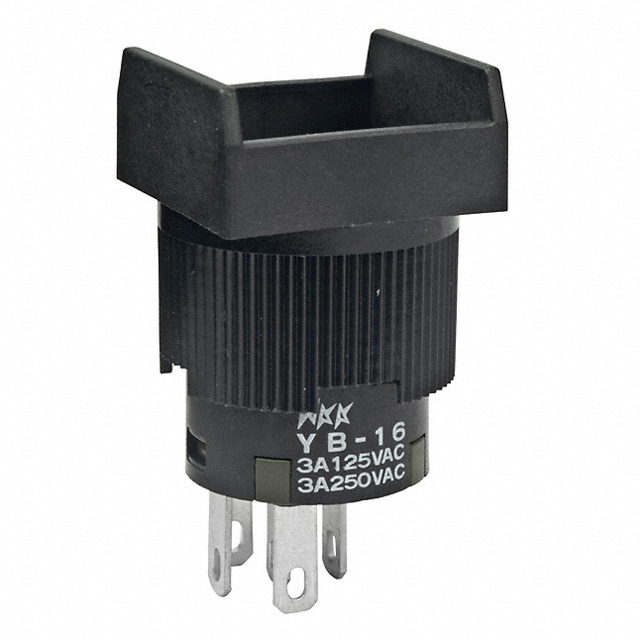

Specification	YB16SKW01

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	SPDT
Current Rating	3 A
Electrical Life (Cycles)	100000 Cycles
Features	Tactile Feedback
Mechanical Life (Cycles)	200000 Cycles
Mounting Type	Front, Panel Mount
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-25 °C
Panel Cutout Diameter	16 mm
Panel Cutout Shape	Circular
Quick Connect Size (0.110")	0.11 in
Switch Function	On-On
Termination Style	Quick Connect, Solder
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

YB16SK Series

Part	Mechanical Life (Cycles)	Electrical Life (Cycles)	Features	Type	Switch Function	Termination Style	Panel Cutout Diameter	Panel Cutout Shape	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating - DC	Actuator Marking	Mounting Type	Illumination Voltage (Nominal)	Current Rating	Circuit	Actuator Type	Voltage Rating - AC	Color - Actuator/Cap	Color	Illumination Type	Quick Connect Size (0.110")
NKK Switches YB16SKW03-5D-JB	200000 Cycles	100000 Cycles	Tactile Feedback	Illuminated Standard	On-On	PC Pin	16 mm	Circular	-25 °C	50 °C	30 V	No Marking	Front Panel Mount	2 VDC	3 A	SPDT	Button Square	125 V	Clear (White Filter/Diffuser)	Amber	LED
NKK Switches YB16SKW01-5D-JB	200000 Cycles	100000 Cycles	Tactile Feedback	Illuminated Standard	On-On	Quick Connect Solder	16 mm	Circular	-25 °C	50 °C	30 V	No Marking	Front Panel Mount	2 VDC	3 A	SPDT	Button Square	125 V	Clear (White Filter/Diffuser)	Amber	LED	0.11 in
NKK Switches YB16SKW01-5C24-JC	200000 Cycles	100000 Cycles	Tactile Feedback	Illuminated Standard	On-On	Quick Connect Solder	16 mm	Circular	-25 °C	50 °C	30 V	No Marking	Front Panel Mount	24 V	3 A	SPDT	Button Square	125 V	Clear (Red Filter/Diffuser)	Red	LED	0.11 in
NKK Switches YB16SKG01-5C05-JC	200000 Cycles	100000 Cycles	Tactile Feedback	Illuminated Standard	On-On	Quick Connect Solder	16 mm	Circular	-25 °C	50 °C	28 V	No Marking	Front Panel Mount	5 V	0.4 VA	SPDT	Button Square	28 V	Clear (Red Filter/Diffuser)	Red	LED	0.11 in
NKK Switches YB16SKW01-5C12-JC	200000 Cycles	100000 Cycles	Tactile Feedback	Illuminated Standard	On-On	Quick Connect Solder	16 mm	Circular	-25 °C	50 °C	30 V	No Marking	Front Panel Mount	12 V	3 A	SPDT	Button Square	125 V	Clear (Red Filter/Diffuser)	Red	LED	0.11 in
NKK Switches YB16SKW01-5F05-JF	200000 Cycles	100000 Cycles	Tactile Feedback	Illuminated Standard	On-On	Quick Connect Solder	16 mm	Circular	-25 °C	50 °C	30 V	No Marking	Front Panel Mount	5 V	3 A	SPDT	Button Square	125 V	Clear (Green Filter/Diffuser)	Green	LED	0.11 in
NKK Switches YB16SKG01-6G-JB	200000 Cycles	100000 Cycles	Tactile Feedback	Illuminated Standard	On-On	Solder Lug	16 mm	Circular	-25 °C	70 °C	28 V	No Marking	Front Panel Mount	3.6 VDC	0.4 VA	SPDT	Button Square	28 V	Clear (White Filter/Diffuser)	Blue	LED
NKK Switches YB16SKW01-5D12-JD	200000 Cycles	100000 Cycles	Tactile Feedback	Illuminated Standard	On-On	Quick Connect Solder	16 mm	Circular	-25 °C	50 °C	30 V	No Marking	Front Panel Mount	12 V	3 A	SPDT	Button Square	125 V	Clear (Amber Filter/Diffuser)	Amber	LED	0.11 in
NKK Switches YB16SKG01-1F05-JA	200000 Cycles	100000 Cycles	Tactile Feedback	Illuminated Standard	On-On	Quick Connect Solder	16 mm	Circular	-25 °C	50 °C	28 V	No Marking	Front Panel Mount	5 V	0.4 VA	SPDT	Button Square	28 V	Clear (Black Filter/Diffuser)	Green	LED	0.11 in
NKK Switches YB16SKG01-1C02-JB	200000 Cycles	100000 Cycles	Tactile Feedback	Illuminated Standard	On-On	Quick Connect Solder	16 mm	Circular	-25 °C	50 °C	28 V	No Marking	Front Panel Mount	1.9 VDC	0.4 VA	SPDT	Button Square	28 V	Clear (White Filter/Diffuser)	Red	LED	0.11 in
