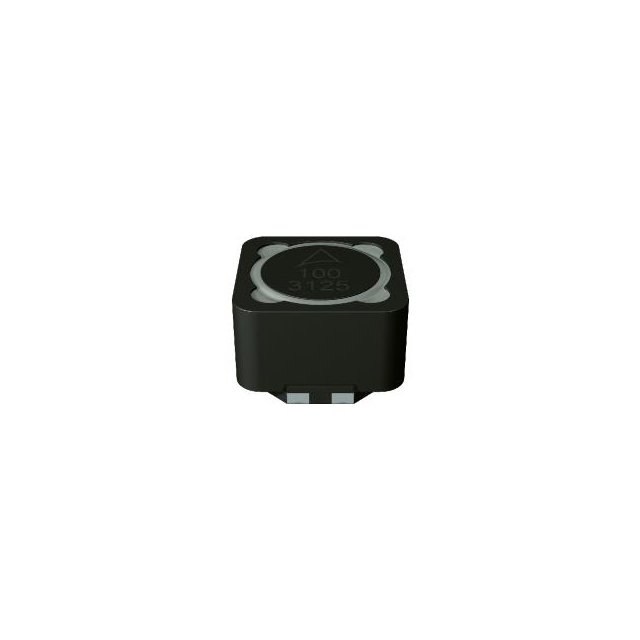

B82477D4333M000

B82477D4333M000

Active
EPCOS - TDK Electronics

FIXED IND 33UH 2.3A 110 MOHM SMD

Find alt
B82477D4333M000

B82477D4333M000

Active
EPCOS - TDK Electronics

FIXED IND 33UH 2.3A 110 MOHM SMD

Find alt

Description

General part information

B82477D4333M000

Shielded 2 Coil Inductor Array 132 µH Inductance - Connected in Series 33 µH Inductance - Connected in Parallel 55mOhm Max DC Resistance (DCR) - Parallel Nonstandard

Technical Specifications

Parameters and characteristics for this part

SpecificationB82477D4333M000
Current Rating - Series2.3 A
Current Saturation - Parallel3.8 A
Current Saturation - Series1.9 A
DC Resistance (DCR) - Parallel (Max)55 mOhm
DC Resistance (DCR) - Series (Max)220 mOhm
Height0.335 in
Inductance - Connected In Parallel33 µH
Inductance - Connected In Series132 µH
Mounting TypeSurface Mount
Number of Coils2
Operating Temperature (Max)150 °C
Operating Temperature (Min)-55 °C
Package / CaseNonstandard
RatingsAEC-Q200
ShieldingShielded
Size / Dimension Length0.492 in
Size / Dimension Width0.492 in
Tolerance20 %
