HR-5/4AAAU
ObsoleteFDK America, Inc.
BATTERY NIMH 1.2V 760MAH 5/4 AAA
HR-5/4AAAU
ObsoleteFDK America, Inc.
BATTERY NIMH 1.2V 760MAH 5/4 AAA
Description
General part information
HR-5/4AAAU

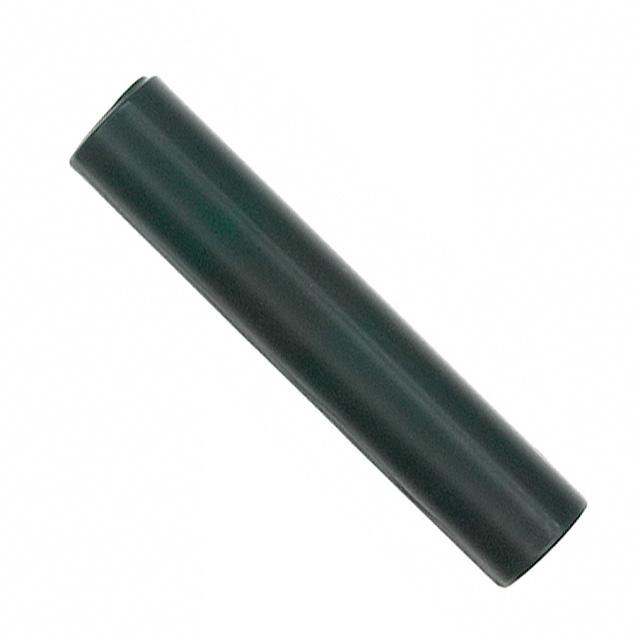

5/4AAA 1.2 V Nickel Metal Hydride Battery Rechargeable (Secondary) 760mAh
Technical Specifications
Parameters and characteristics for this part
| Specification | HR-5/4AAAU |
|---|---|
| Battery Cell Size | 5/4AAA |
| Battery Chemistry | Nickel Metal Hydride |
| Capacity (Charge) | 760 mAh |
| Discharge Rate (Current) | 152 mA |
| Size / Dimension Diameter | 0.41 in |
| Size / Dimension Height | 1.97 in |
| Standard Charge Current | 85 mA |
| Standard Charge Time | 16 Hrs |
| Termination Style | Flat Top (Non-Extending) |
| Voltage - Rated | 1.2 VAC |
| Weight | 15.42 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
