B88269X1200C011
ObsoleteEPCOS - TDK Electronics

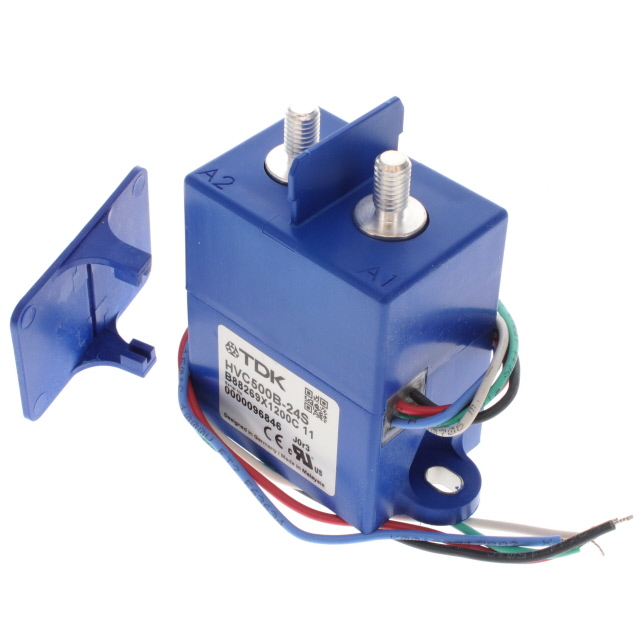

HVC500B-24S / 500A 24V COIL STUC
B88269X1200C011
ObsoleteEPCOS - TDK Electronics
HVC500B-24S / 500A 24V COIL STUC
Description
General part information
B88269X1200C011
HVC500B-24S / 500A 24V COIL STUC
Technical Specifications
Parameters and characteristics for this part
| Specification | B88269X1200C011 |
|---|---|
| Coil Current | 250 mA |
| Coil Power | 6 W |
| Coil Resistance | 96 Ohms |
| Coil Voltage | 24 VDC |
| Contact Form | SPST-NO |
| Contact Material | Copper Alloy |
| Contact Rating (Current) | 500 A |
| Features | Hermetically, Sealed |
| Form A Count | 1 |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2 VDC |
| Operate Time | 40 ms |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Release Time | 20 ms |
| Switching Voltage DC (Max) | 900 VDC |
| Termination Style | Wire Leads, Stud |
