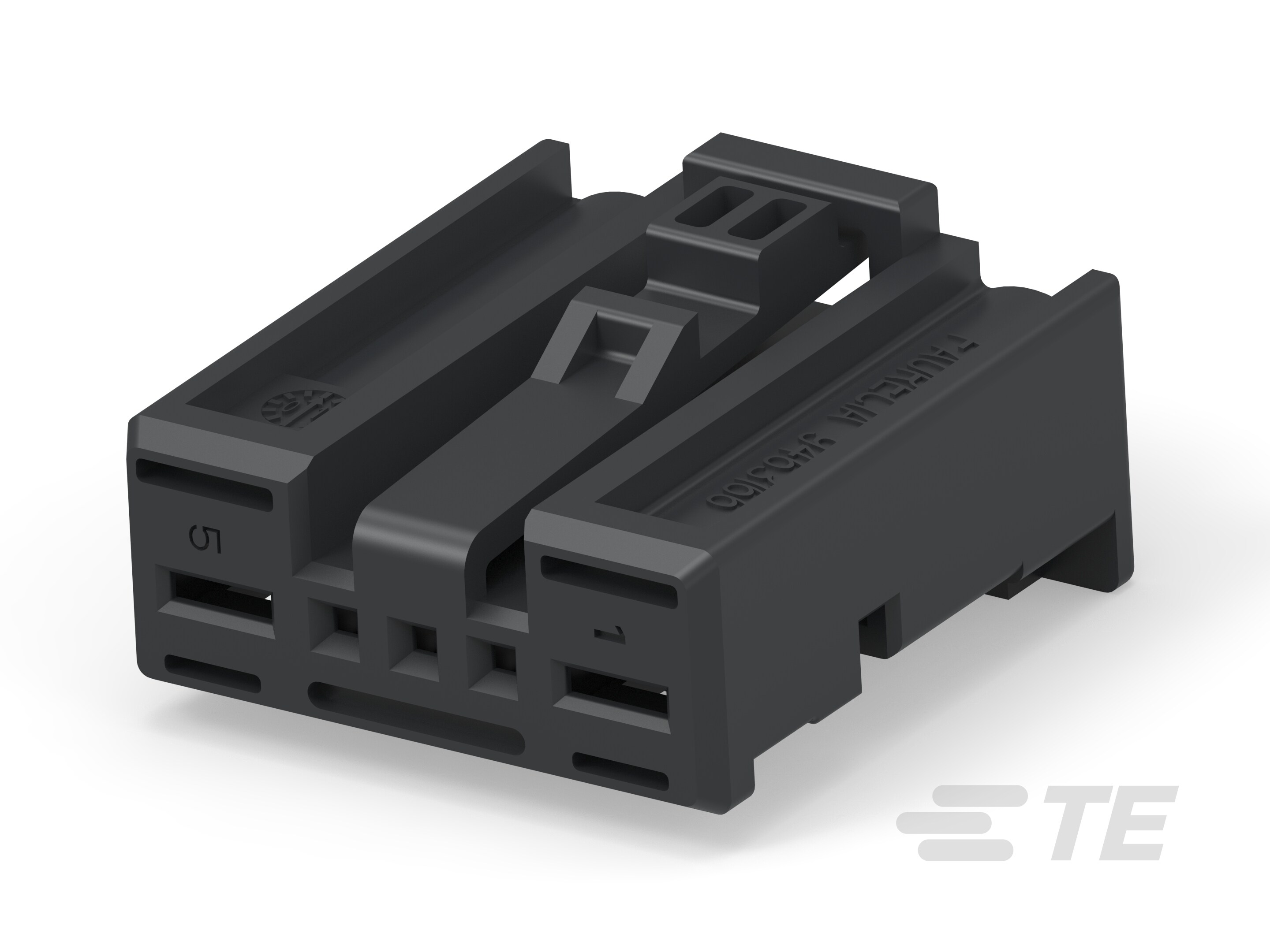

1379217-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 5POS 2.54MM
1379217-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 5POS 2.54MM
Description
General part information
1379217-1
5 Position Housing, Housing for Female Terminals, Wire-to-Board / Wire-to-Wire, 2.54 mm [.1 in] Centerline, Black, Wire & Cable, Power & Signal
Technical Specifications
Parameters and characteristics for this part
| Specification | 1379217-1 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions (Normal) | 3 |
| Number of Positions (Power) | 2 |
| Number of Positions (Total) | 5 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.1 in |
