2315744-4
ActiveTE Connectivity AMP Connectors

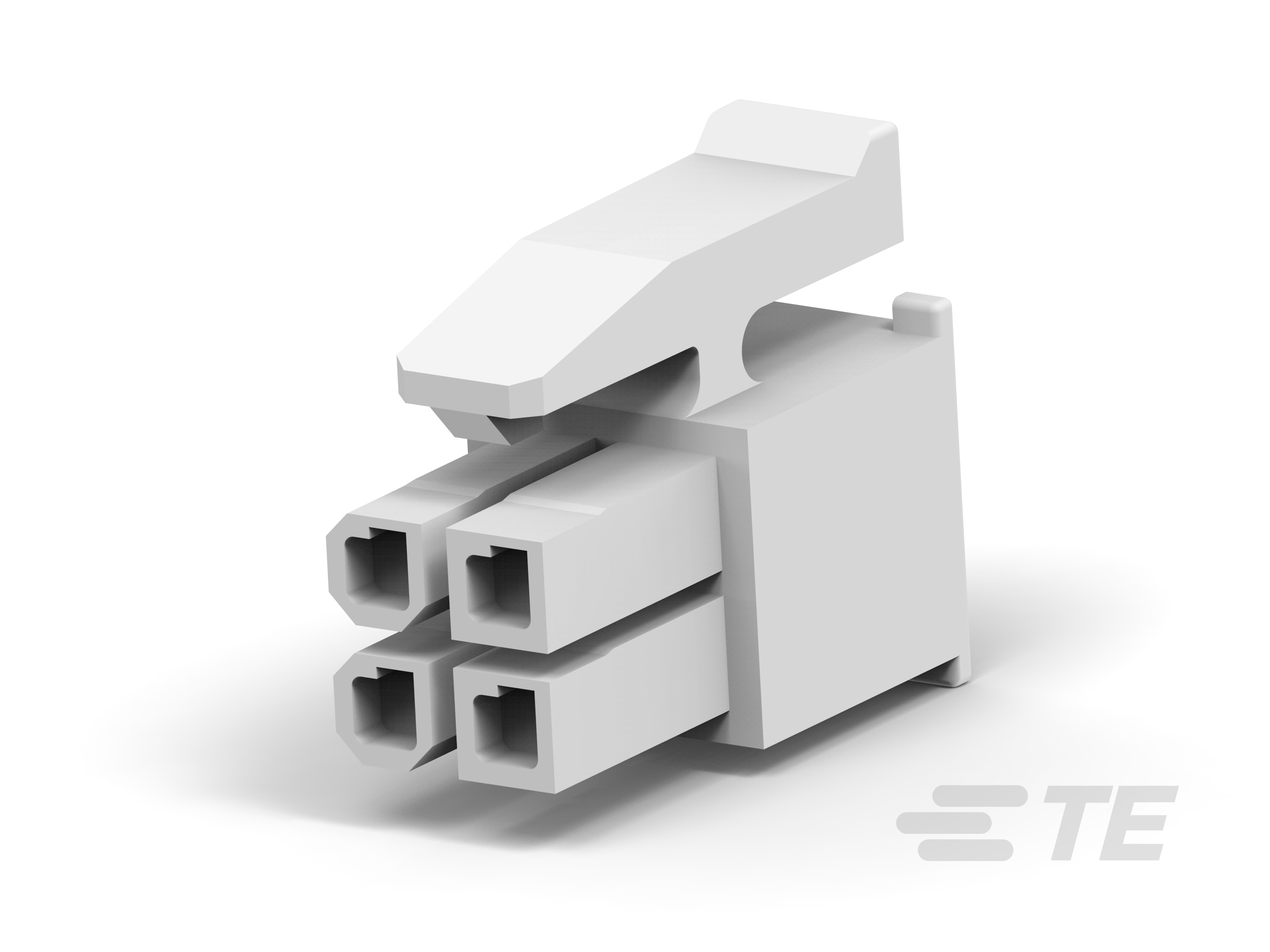

HEADERS & WIRE HOUSINGS 4P, MICRO MNL,RCPT H SG, DUAL ROW, V0 GW
2315744-4
ActiveTE Connectivity AMP Connectors
HEADERS & WIRE HOUSINGS 4P, MICRO MNL,RCPT H SG, DUAL ROW, V0 GW
Description
General part information
2315744-4
HEADERS & WIRE HOUSINGS 4P, MICRO MNL,RCPT H SG, DUAL ROW, V0 GW
Technical Specifications
Parameters and characteristics for this part
| Specification | 2315744-4 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Features | Glow Wire Compliant |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.118 in |
| Row Spacing | 0.118 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
