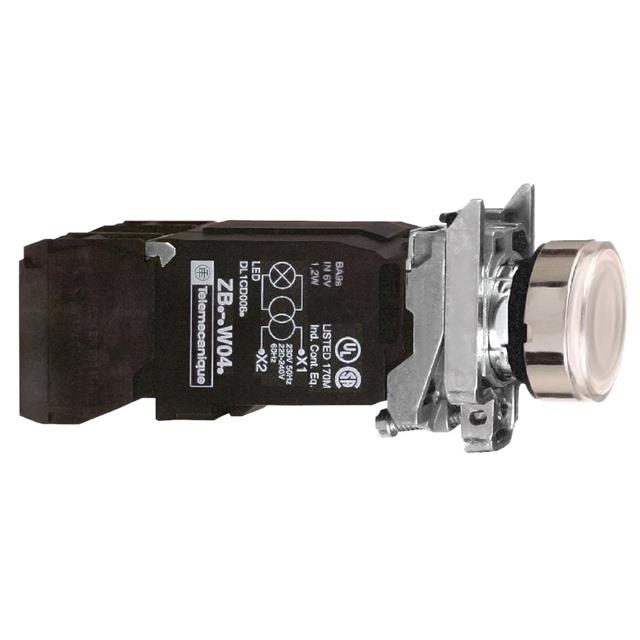

XB4BW3135
ActiveSCHNEIDER ELECTRIC
PUSHBUTTON LED 120VAC 22MM XB4 +OPTIONS ROHS COMPLIANT: YES
XB4BW3135
ActiveSCHNEIDER ELECTRIC
PUSHBUTTON LED 120VAC 22MM XB4 +OPTIONS ROHS COMPLIANT: YES
Description
General part information
XB4BW3135
Pushbutton Switch DPST-NO/NC Standard, Illuminated Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | XB4BW3135 |
|---|---|
| Actuator Type | Round, Flush, Button |
| Circuit | DPST-NO/NC |
| Color | White |
| Color - Actuator/Cap | White |
| Current Rating | 550 mA, 6 A |
| Electrical Life (Cycles) | 1000000 Cycles |
| Illumination Type | LED |
| Illumination Voltage (Nominal) (Maximum) | 120 VAC/DC |
| Illumination Voltage (Nominal) (Minimum) | 110 VAC |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP66 |
| Mechanical Life (Cycles) | 10000000 Cycles |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Panel Cutout Diameter | 22 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-Off, Off-On |
| Termination Style | Screw Terminal |
| Type | Standard, Illuminated |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 125 V |
