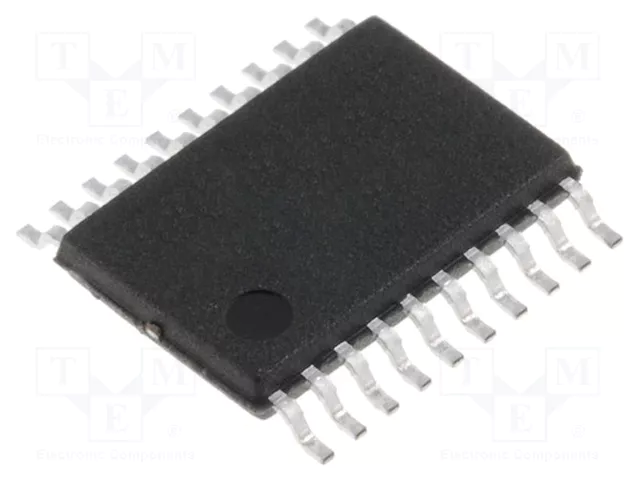

STM8S903F3P3

Active
STMicroelectronics

MAINSTREAM APPLICATION SPECIFIC LINE 8-BIT MCU WITH 8 KBYTES FLASH, 16 MHZ CPU, INTEGRATED EEPROM

Find alt
Primary product image

STM8S903F3P3

Active
STMicroelectronics

MAINSTREAM APPLICATION SPECIFIC LINE 8-BIT MCU WITH 8 KBYTES FLASH, 16 MHZ CPU, INTEGRATED EEPROM

Find alt

Description

General part information

STM8 Series

The STM8AF526x/8x/Ax and STM8AF6269/8x/Ax automotive 8-bit microcontrollers described in this datasheet offer from 32 Kbyte to 128 Kbyte of non volatile memory and integrated true data EEPROM. They are referred to as high density STM8A devices in STM8S series and STM8AF series 8-bit microcontrollers reference manual (RM0016).

The STM8AF52 series features a CAN interface.

All devices of the STM8A product line provide the following benefits: reduced system cost, performance and robustness, short development cycles, and product longevity.

Technical Specifications

Parameters and characteristics for this part

SpecificationSTM8S903F3P3
A/D Channels5 count
A/D Resolution (bits)10 bit
ConnectivityUSART, UART, IrDA, LINbus, I2C, SPI
Core ProcessorSTM8
Core Size (Bit Width)8 Bit
EEPROM Size (Depth)640
EEPROM Size (Width)8 bit
Mounting TypeSurface Mount
Number of I/O16
Operating Temperature (Max)125 °C
Operating Temperature (Min)-40 °C
Oscillator TypeInternal
Package Length0.173 in
Package Name20-TSSOP
Package Width4.4 mm
PeripheralsWDT, PWM, Brown-out Detect, POR, Reset
Program Memory Depth8 K
Program Memory Size8 KB
Program Memory TypeFLASH
Program Memory Width8 bit
RAM Size Depth1 K
RAM Size Width8 bit
Speed16 MHz
Voltage - Supply (Vcc/Vdd) Maximum5.5 V
Voltage - Supply (Vcc/Vdd) Minimum2.95 V
