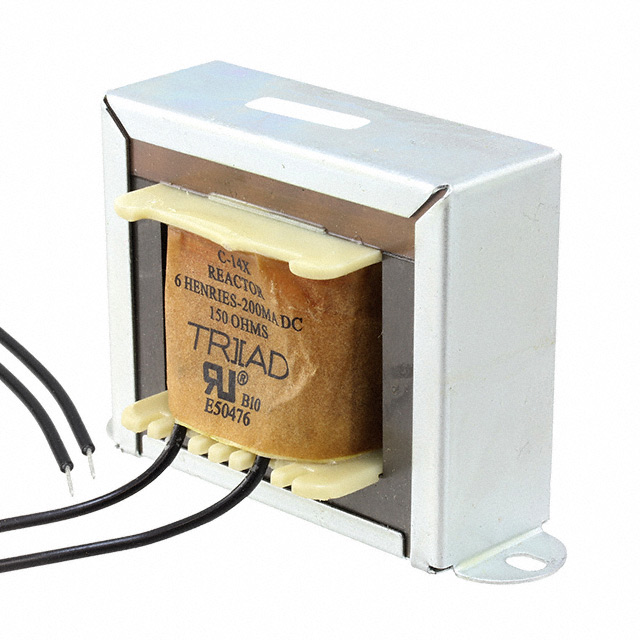

C-14X
ActiveTriad Magnetics
FIXED IND 6H 200MA 150 OHM CHASS
C-14X
ActiveTriad Magnetics
FIXED IND 6H 200MA 150 OHM CHASS
Description
General part information
C-14X
6 H Unshielded Wirewound Inductor 200 mA 150Ohm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | C-14X |
|---|---|
| Current Rating | 0.2 A |
| DC Resistance (DCR) | 150 Ohm |
| Height - Seated (Max) | 2.598 in |
| Inductance | 6 H |
| Inductance Frequency - Test | 120 Hz |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 4 in |
| Size / Dimension Width | 2.25 in |
| Tolerance (Negative) | 20 % |
| Tolerance (Positive) | 50 % |
| Type | Wirewound |
