Description
General part information

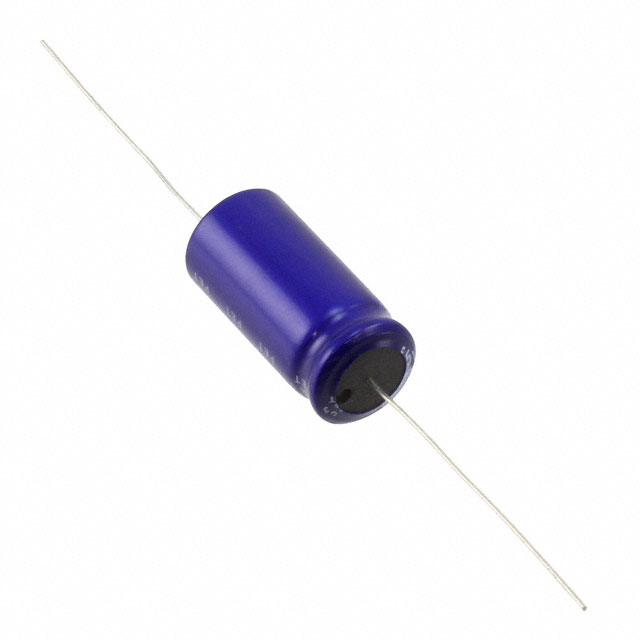

TVX2W100MCD
10 µF 450 V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | TVX2W100MCD |
|---|---|
| Applications | General Purpose |
| Capacitance | 10 µF |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can, Axial |
| Ripple Current | 136 mA, 85 mA |
| Size / Dimension Diameter | 0.512 in |
| Size / Dimension Length | 1.102 in |
| Tolerance | 20 % |
| Voltage - Rated | 450 V |
