Description
General part information
AXA-RTJRTJ

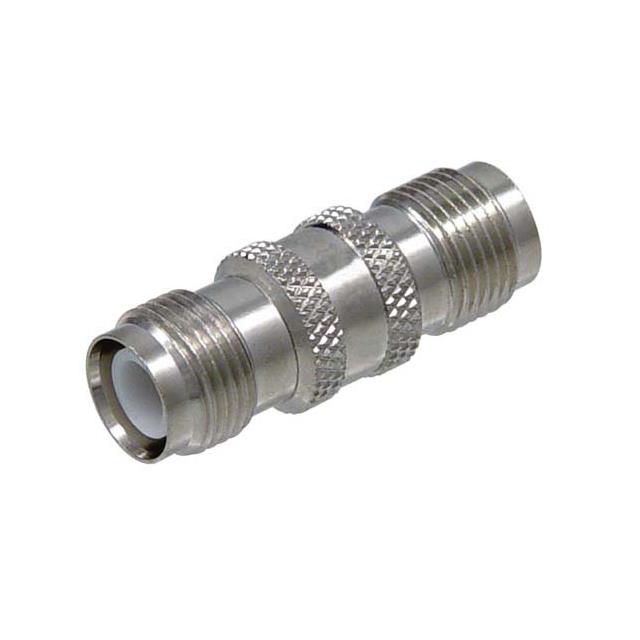

Adapter Coaxial Connector RP-TNC Jack, Male Pin To RP-TNC Jack, Male Pin 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | AXA-RTJRTJ |
|---|---|
| Adapter Series | RP-TNC to RP-TNC |
| Adapter Type | Jack to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Center Gender | Male |
| Conversion Type | Same Series |
| Convert From (Adapter End) | RP-TNC Jack, Male Pin |
| Convert To (Adapter End) Gender | Male Pin |
| Convert To (Adapter End) Type | RP-TNC Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 11 GHz |
| Impedance | 50 Ohm |
| Insertion Loss | 0.15 dB |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Style | Straight |
