Description
General part information

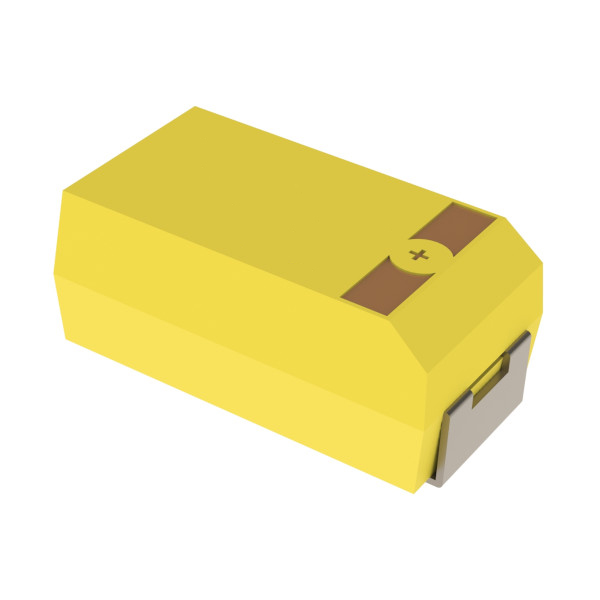

T493D336M035BK6210
33 µF Molded Tantalum Capacitors 35 V 2917 (7343 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | T493D336M035BK6210 |
|---|---|
| Capacitance | 33 µF |
| Failure Rate (Percent) | 0.1 % |
| Failure Rate Rating | B |
| Features | High Reliability |
| Height - Seated (Max) | 0.122 in |
| Lifetime | 2000 Hrs |
| Manufacturer Size Code | D |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2917 (7343 Metric) |
| Ratings | COTS |
| Size / Dimension Length | 0.287 in |
| Size / Dimension Width | 0.169 in |
| Tolerance | 20 % |
| Type | Molded |
| Voltage - Rated | 35 V |
