Description
General part information
2-2188220-1

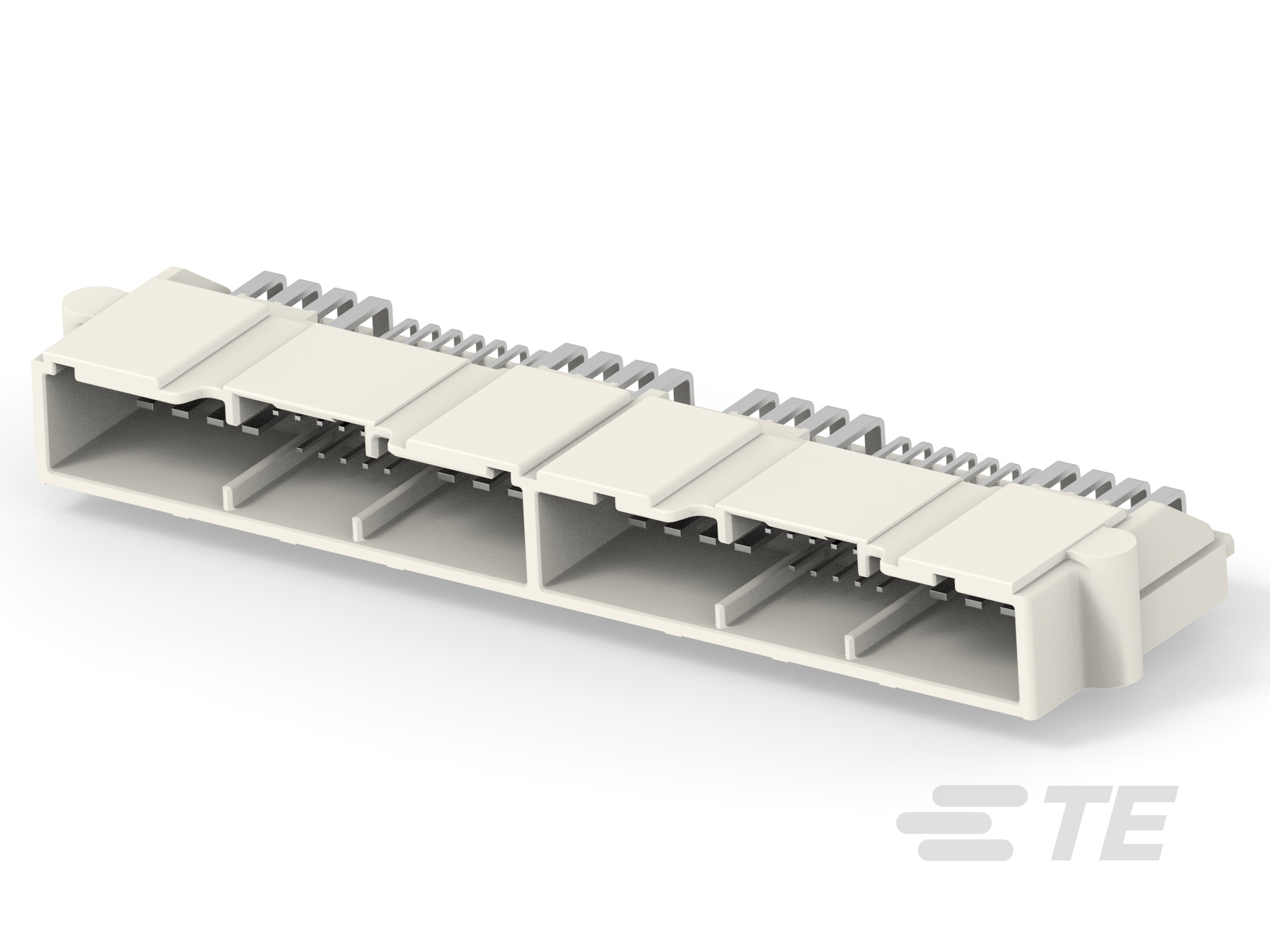

Horizontal, Wire-to-Board, 56 Position, 2 Rows, 2mm / 3.2mm [.078in / .126in] Centerline, Tin (Sn), Printed Circuit Board, Power & Signal, Natural
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-2188220-1 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Shape | Rectangular |
| Contact Type | Male Pin |
| Current Rating | 15 A |
| Fastening Type | Push-Pull |
| Insulation Color | Natural |
| Material Flammability Rating | UL94 HB |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 56 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
