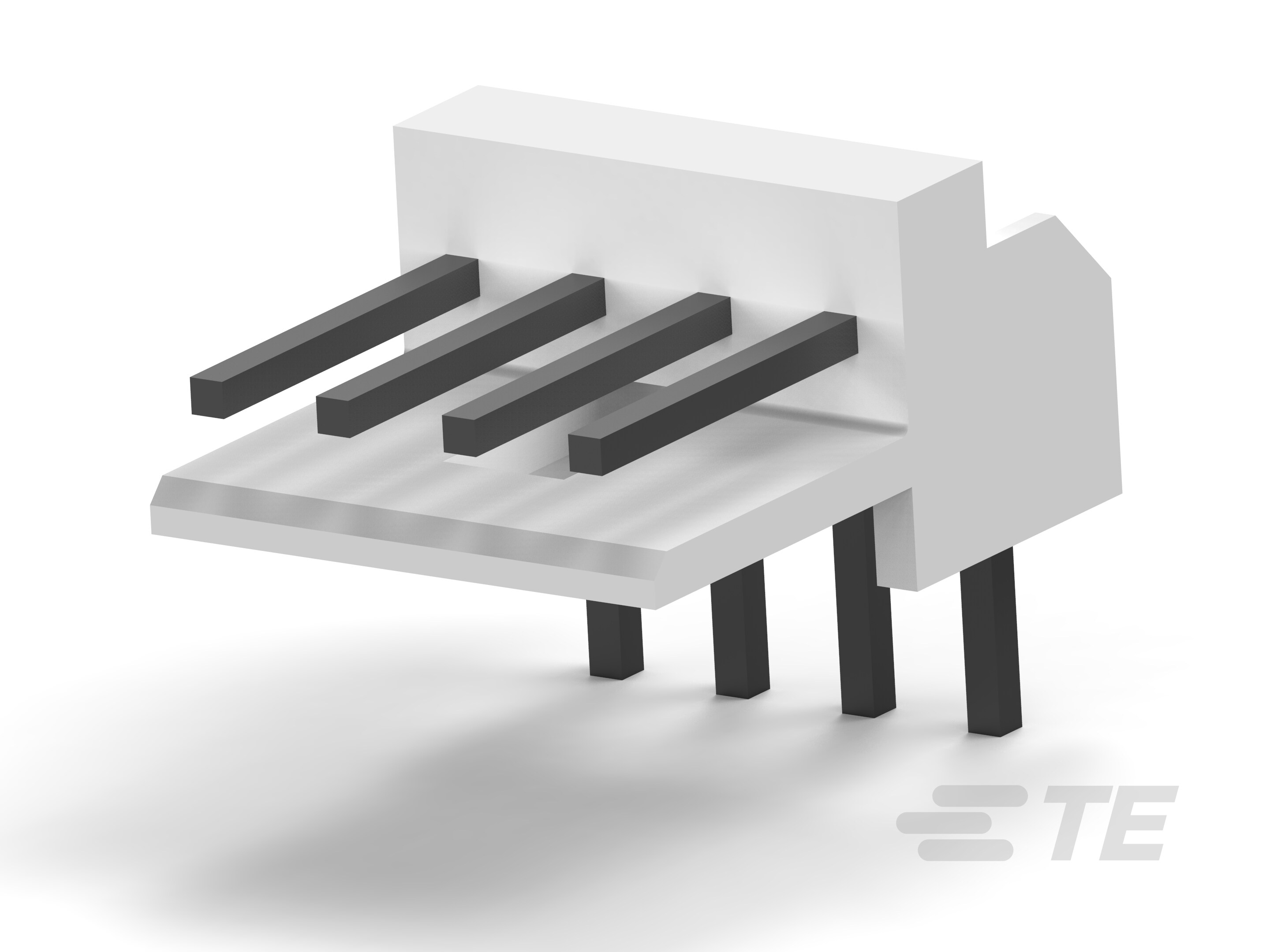

POST HEADER ASSY HORIZONTAL EI-171826-4

171826-4

Active
TE Connectivity AMP Connectors

CONN HEADER R/A 4POS 2.5MM

Find alt
POST HEADER ASSY HORIZONTAL EI-171826-4

171826-4

Active
TE Connectivity AMP Connectors

CONN HEADER R/A 4POS 2.5MM

Find alt

Description

General part information

171826-4

CONN HEADER R/A 4POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification171826-4
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thickness - Mating31.5 µin
Contact Length - Mating0.295 in
Contact Length - Post0.142 in
Contact MaterialBrass
Contact ShapeSquare
Contact TypeMale Pin
Current Rating2 A
Fastening TypeLatch Holder
Insulation ColorNatural
Insulation Height0.264 in
Insulation MaterialPolyamide (PA66), Nylon 6/6
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle
Number of Positions4
Number of Positions LoadedAll
Number of Rows1
Pitch - Mating0.098 in
ShroudingShrouded - 1 Wall
StyleCable/Wire, Board
TerminationSolder
Voltage Rating (AC)250 VAC
Voltage Rating (DC)350 VDC
