2501419-1
ActiveTE Connectivity AMP Connectors

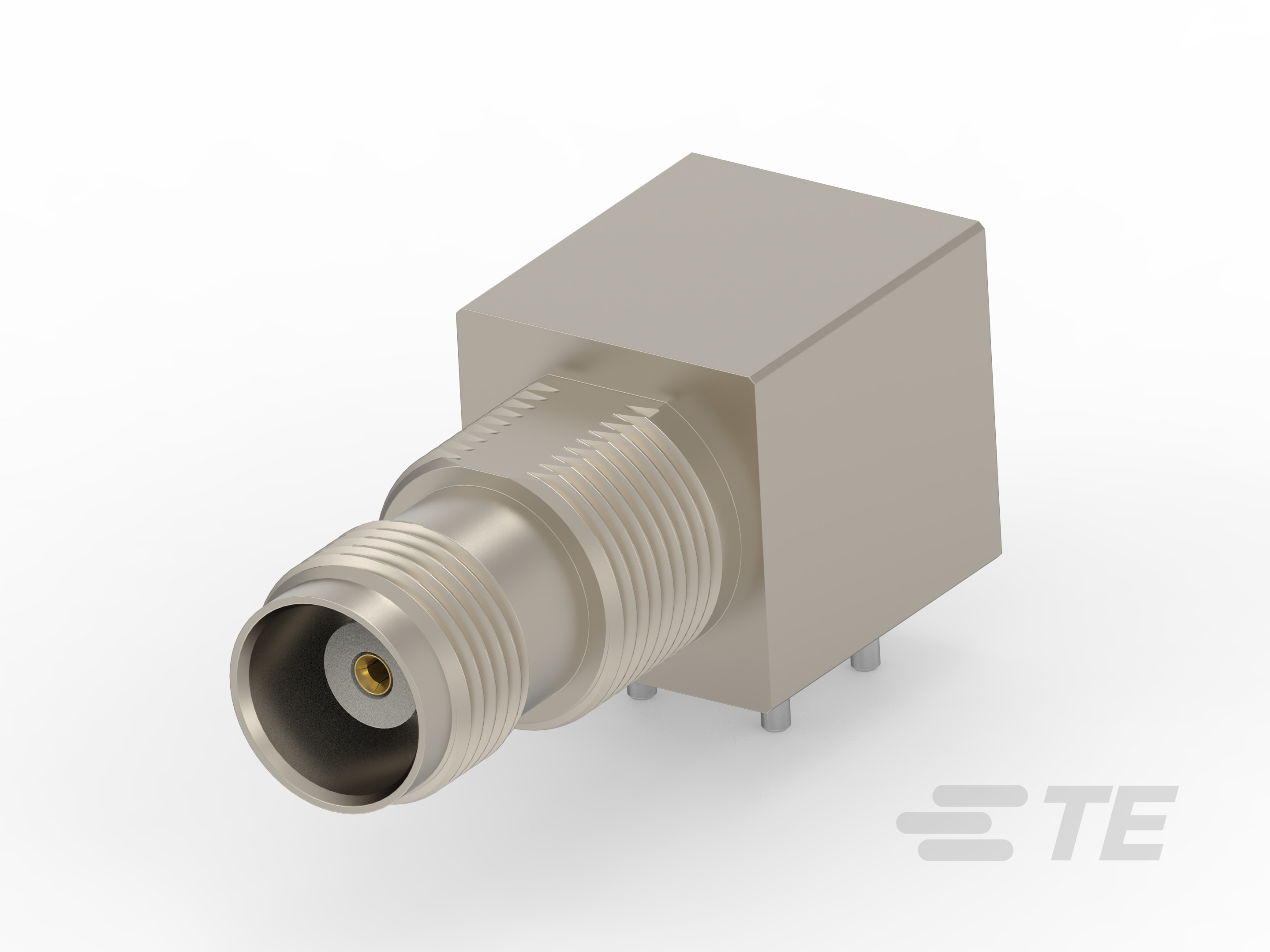

TNC JACK RA PCB THRU HOLE 11 GHZ 50 OHM
2501419-1
ActiveTE Connectivity AMP Connectors
TNC JACK RA PCB THRU HOLE 11 GHZ 50 OHM
Description
General part information
2501419-1
TNC Connector, Jack, 50 ohm, Screw, 0 – 11 GHz, Cable-to-Board, 1 Position, Printed Circuit Board, Panel Mount, -65 – 165 °C [-85 – 329 °F], Brass
Technical Specifications
Parameters and characteristics for this part
| Specification | 2501419-1 |
|---|---|
| Center Contact Material | Phosphor Bronze |
| Connector Style | TNC |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Fastening Type | Threaded |
| Frequency - Max | 11 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Type | Through Hole, Right Angle |
| Number of Ports | 1 |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
