Specification	SFR2500003904JA500

Composition	Metal Film
Number of Terminations	2
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-55 °C
Package / Case	Axial
Package Name	Axial
Power (Watts)	0.4 W
Resistance	3.9 MOhm
Size / Dimension Diameter	0.098 in
Size / Dimension Length	0.256 in
Temperature Coefficient	250 ppm/°C
Temperature Coefficient (Highest)	250 ppm/°C
Temperature Coefficient (Lowest)	-250 ppm/°C
Tolerance	5 %

SFR25 Series

...

Part	Resistance	Size / Dimension Length	Size / Dimension Diameter	Composition	Number of Terminations	Package / Case	Operating Temperature (Max)	Operating Temperature (Min)	Tolerance	Temperature Coefficient	Temperature Coefficient (Highest)	Temperature Coefficient (Lowest)	Power (Watts)	Package Name
Vishay Dale SFR2500004754FR500	4.75 MOhms	0.256 in	0.098 in	Metal Film	2	Axial	155 °C	-55 °C	1 %	250 ppm/°C	250 ppm/°C	-250 ppm/°C	0.4 W
Vishay Dale SFR2500003009FA500	30 Ohm	0.256 in	0.098 in	Metal Film	2	Axial	155 °C	-55 °C	1 %	100 ppm/°C			0.4 W	Axial

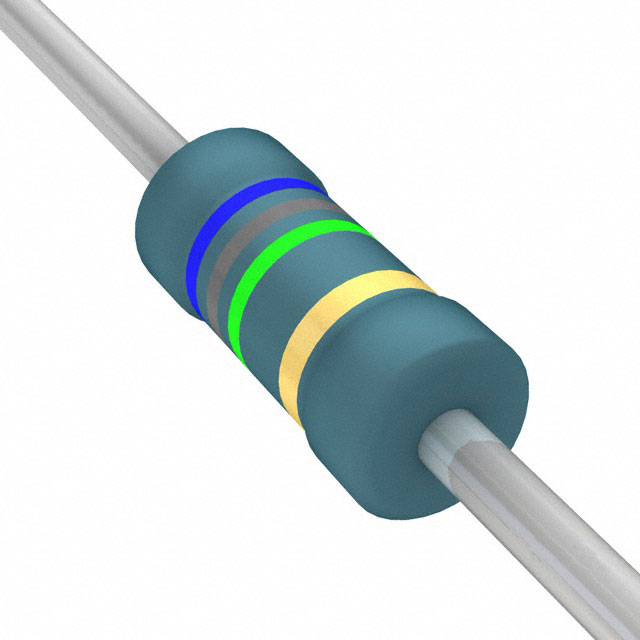

Vishay Dale SFR2500006804JA500	6.8 MOhm	0.256 in	0.098 in	Metal Film	2	Axial	155 °C	-55 °C	5 %	250 ppm/°C	250 ppm/°C	-250 ppm/°C	0.4 W	Axial
Vishay Dale SFR2500006809JA100	68 Ohm	0.256 in	0.098 in	Metal Film	2	Axial	155 °C	-55 °C	5 %	100 ppm/°C			0.4 W	Axial
Vishay Dale SFR2500005602JA500	56 kOhm	0.256 in	0.098 in	Metal Film	2	Axial	155 °C	-55 °C	5 %	100 ppm/°C			0.4 W	Axial

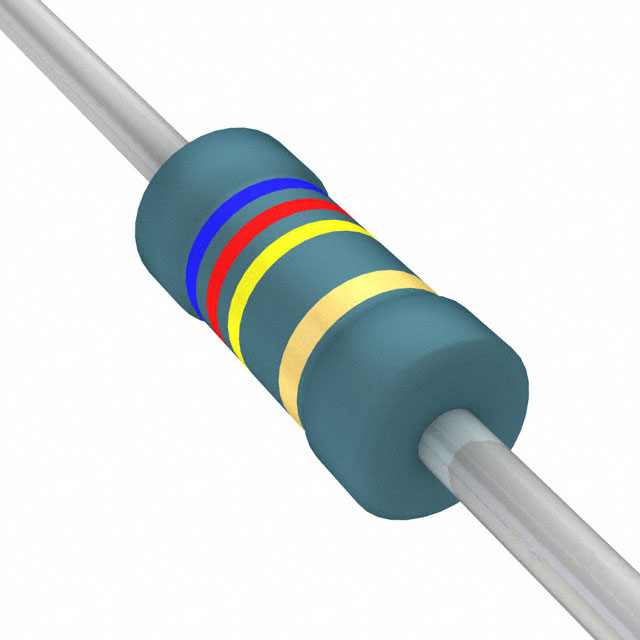

Vishay Dale SFR2500006203JR500	620 kOhm	0.256 in	0.098 in	Metal Film	2	Axial	155 °C	-55 °C	5 %	100 ppm/°C			0.4 W
Vishay Dale SFR2500003908JA100	3.9 Ohm	0.256 in	0.098 in	Metal Film	2	Axial	155 °C	-55 °C	5 %	250 ppm/°C	250 ppm/°C	-250 ppm/°C	0.4 W	Axial
Vishay Dale SFR2500002204JA100	2.2 MOhm	0.256 in	0.098 in	Metal Film	2	Axial	155 °C	-55 °C	5 %	250 ppm/°C	250 ppm/°C	-250 ppm/°C	0.4 W	Axial

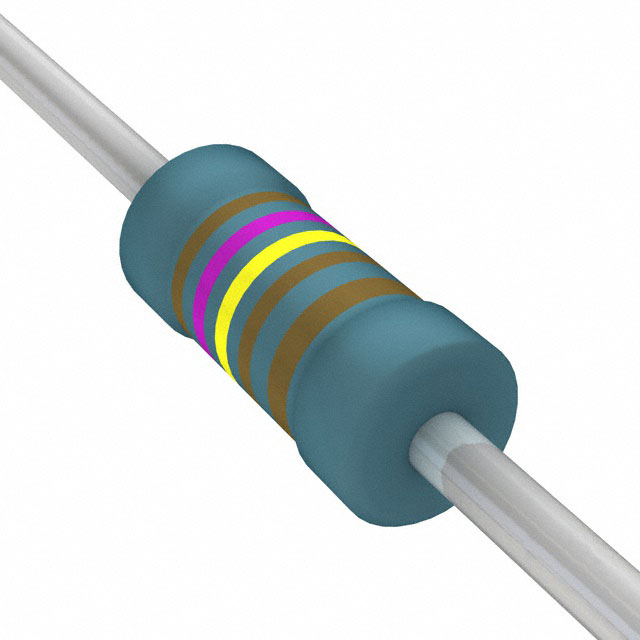

Vishay Dale SFR2500001741FR500	1.74 kOhm	0.256 in	0.098 in	Metal Film	2	Axial	155 °C	-55 °C	1 %	100 ppm/°C			0.4 W	Axial
Vishay Dale SFR2500002004FR500	2 MOhm	0.256 in	0.098 in	Metal Film	2	Axial	155 °C	-55 °C	1 %	250 ppm/°C	250 ppm/°C	-250 ppm/°C	0.4 W	Axial
