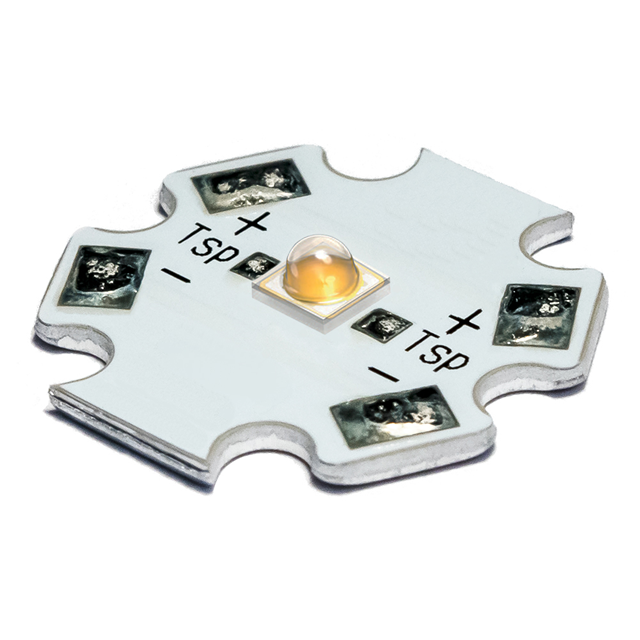

LST1-01 Series

Part	Current - Test	Lumens/Watt	Size / Dimension Diameter	Voltage - Forward (Vf) (Typ)	Height	Configuration	Lens Type	Current - Max	Color	Luminous Flux (Typical)	Type	CRI (Color Rendering Index)	CCT (K)	Wavelength (Max)	Wavelength (Min)	Temperature - Test	Viewing Angle	Wavelength	Luminous Flux
New Energy LST1-01G03-5770-01	700 mA	144 lm/W	19.89 mm	3.3 V	1.7 mm	Starboard	Domed	3 A	Cool White	302 lm	LED Module	70	5700 K
New Energy LST1-01G03-2795-01	700 mA	87 lm/W	19.89 mm	3.1 V	1.7 mm	Starboard	Domed	3 A	Warm White	167 lm	LED Module	95	2700 K
New Energy LST1-01G08-UV01-01	350 mA		19.89 mm	6.5 V	2.9 mm	Starboard	Flat	800 mA	UltraViolet	30 mW	LED Module			280 nm	275 nm	25 °C	130 °
New Energy LST1-01C48-5770-01	350 mA	142 lm/W	19.89 mm	11.9 V		Starboard	Domed	1.05 A	Cool White	590 lm	LED Module	70	5700 K
New Energy LST1-01F06-PRD1-00	350 mA			2.15 V		Starboard			Red		Chip On Board (COB)					25 °C	120 °	655 nm	450 mW
New Energy LST1-01F07-4070-01	350 mA	130 lm/W	19.89 mm	3.2 V	1.7 mm	Starboard	Domed	1.3 A	Neutral White	130 lm	LED Module	70	4000 K
New Energy LST1-01G01-UV03-00	500 mA			3.4 V		Starboard			Violet		Chip On Board (COB)					25 °C	130 °	395 nm	1015 mW
New Energy LST1-01G01-UV02-00	500 mA			3.4 V		Starboard			Violet		Chip On Board (COB)					25 °C	130 °	385 nm	1015 mW
New Energy LST1-01G01-UV01-00	500 mA			3.6 V		Starboard			Violet		Chip On Board (COB)					25 °C	130 °	365 nm	875 mW
New Energy LST1-01F04-3070-01	700 mA	150 lm/W	19.89 mm	3.2 V	1.7 mm	Starboard	Domed	1.8 A	Warm White	300 lm	LED Module	70	3000 K
