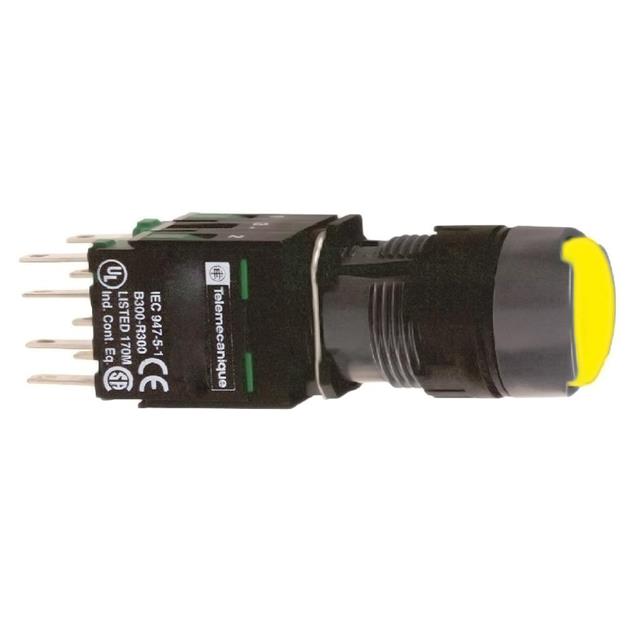

Specification	XB6AW5B1B

Actuator Type	Round, Flush, Button
Circuit	SPST-NO
Color	Yellow
Color - Actuator/Cap	Yellow
Current Rating	220 mA, 3 A
Electrical Life (Cycles)	1000000 Cycles
Illumination Type	LED
Illumination Voltage (Nominal)	12 V
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Mounting Type	Front, Panel Mount
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-25 °C
Panel Cutout Diameter	16 mm
Panel Cutout Shape	Circular
Quick Connect Size (0.110")	0.11 in
Switch Function	On-Off
Termination Style	Quick Connect
Type	Standard, Illuminated
Voltage Rating - AC	120 V
Voltage Rating - DC	125 V
