Description

General part information

ANT-W63-FPC-LH150UF

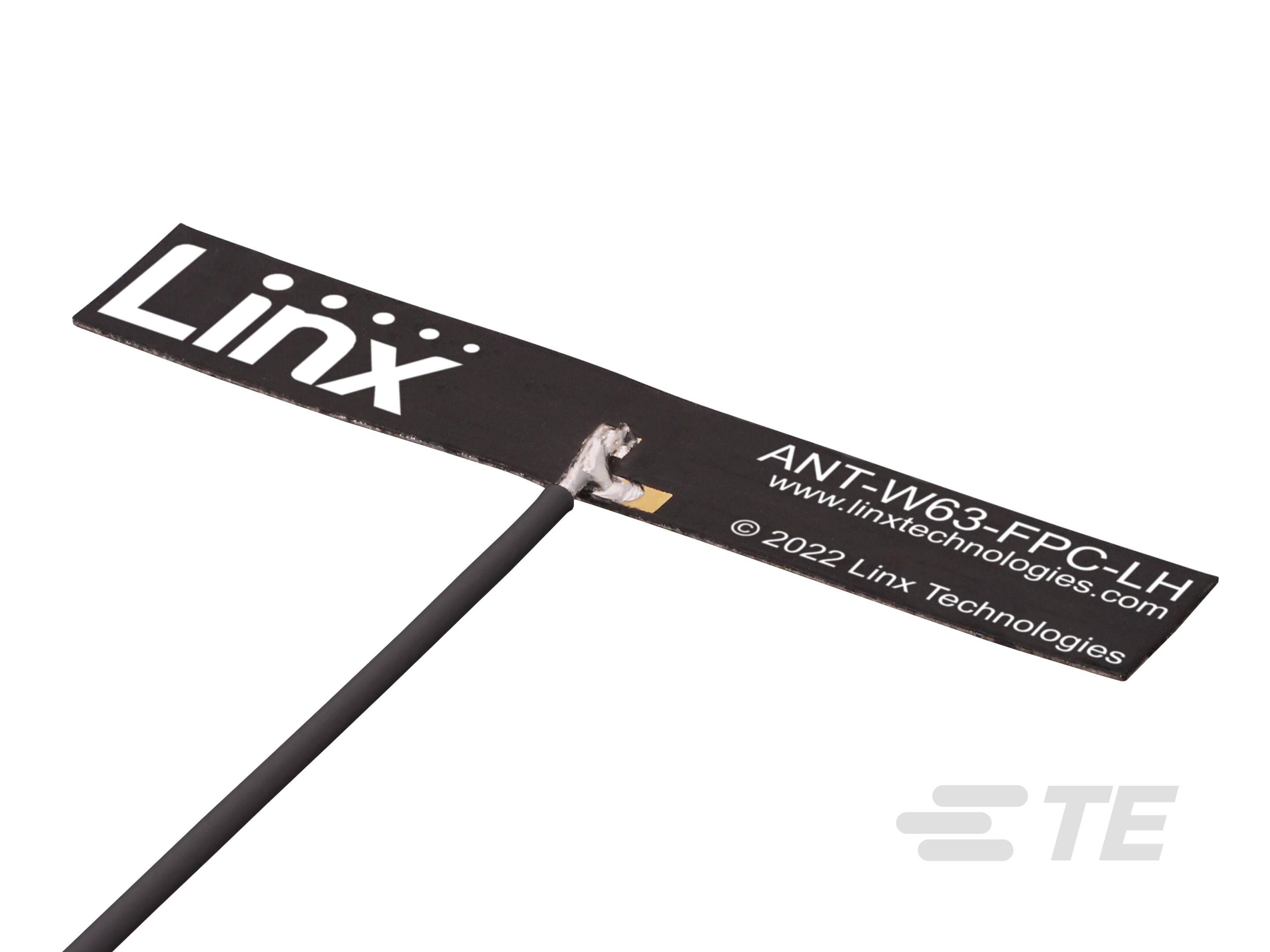

Flexible PCB (FPC) Antenna, Triple Band, Wi-Fi, Internal/Embedded Mount, Adhesive Mount, MHF1, Omnidirectional, Single Port, > 6 dBi Peak Gain

Technical Specifications

Parameters and characteristics for this part

SpecificationANT-W63-FPC-LH150UF
Antenna TypeFlat Patch
ApplicationsWi-Fi 4, Wi-Fi 5, U-NII, Wi-Fi 6E, Wi-Fi 6, Bluetooth, ISM, 802.11b/g/ac/ax, Zigbee™
FeaturesCable, 150mm
Frequency (Center/Band)6.5375GHz, 5.5225GHz, 2.45GHz
Frequency GroupSHF, UHF
Frequency Group Maximum (UHF)3 GHz
Frequency Group Minimum (SHF)4 GHz
Frequency Group Minimum (UHF)2 GHz
Frequency Range (Band 1) Maximum2.5 GHz
Frequency Range (Band 1) Minimum2.4 GHz
Frequency Range (Band 2) Maximum5.895 GHz
Frequency Range (Band 2) Minimum5.15 GHz
Frequency Range (Band 3) Maximum7.125 GHz
Frequency Range (Band 3) Minimum5.95 GHz
Gain4.5 dBi, 10.1 dBi, 6.3 dBi
Height (Max)0.004 in
Mounting TypeAdhesive
Number of Bands3
Power - Max2 VA
RF Family/Standard802.15.4, Bluetooth, General ISM, WiFi
Termination TypeU.FL, I-PEX MHF1
VSWR1.4, 1.7, 1.8
