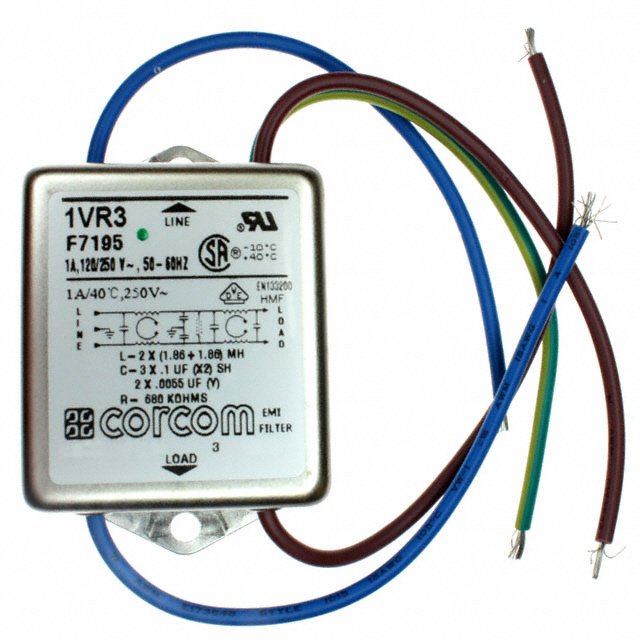

1VR3
ActiveTE Connectivity Raychem Cable Protection
LINE FILTER 250VAC 1A CHASS MNT
Deep-Dive with AI
Search across all available documentation for this part.
1VR3
ActiveTE Connectivity Raychem Cable Protection
LINE FILTER 250VAC 1A CHASS MNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1VR3 |
|---|---|
| Applications | General Purpose |
| Approval Agency | VDE, CSA, UR |
| Configuration | Two Stage |
| Current | 1 A |
| Filter Type | Single Phase |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | 50 Hz |
| Inductance | 3.72 mH |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -10 °C |
| Termination Style | Wire Leads |
| Voltage - Rated AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 33.41 | |
| 18 | $ 25.89 | |||
| 27 | $ 24.98 | |||
| 54 | $ 23.49 | |||
| 108 | $ 22.10 | |||
| 252 | $ 21.69 | |||
Description
General part information
1V Series
Single Phase EMC/EMI Line Filter 1 A 250V 50/60Hz Two Stage Wire Leads
