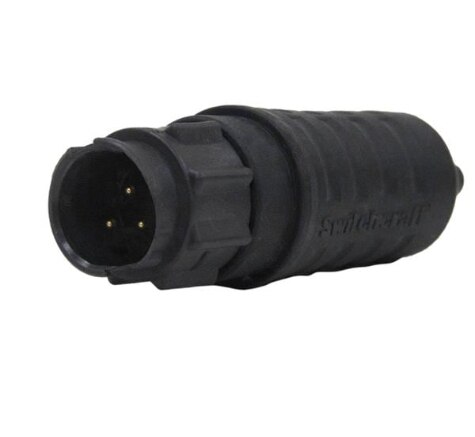

Specification	EN3L3MCLX

Applications	General Purpose, Medical, Instrumentation, Marine
Backshell Material, Plating	Thermoplastic
Cable Opening (Max)	0.38 in
Cable Opening (Min)	0.23 in
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating	7.5 A
Fastening Type	Bayonet Lock
Features	Cable Clamp, Backshell
Ingress Protection Description	Waterproof, Water Resistant, Dust Tight
Ingress Protection IP Rating	IP68, IP66
Insert Material	Elastomer
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	3
Operating Temperature (Max)	65 °C
Operating Temperature (Min)	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Thermoplastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	250 V
Voltage Rating (Type)	DC
