ET27J1CBE2
ActiveLITTELFUSE

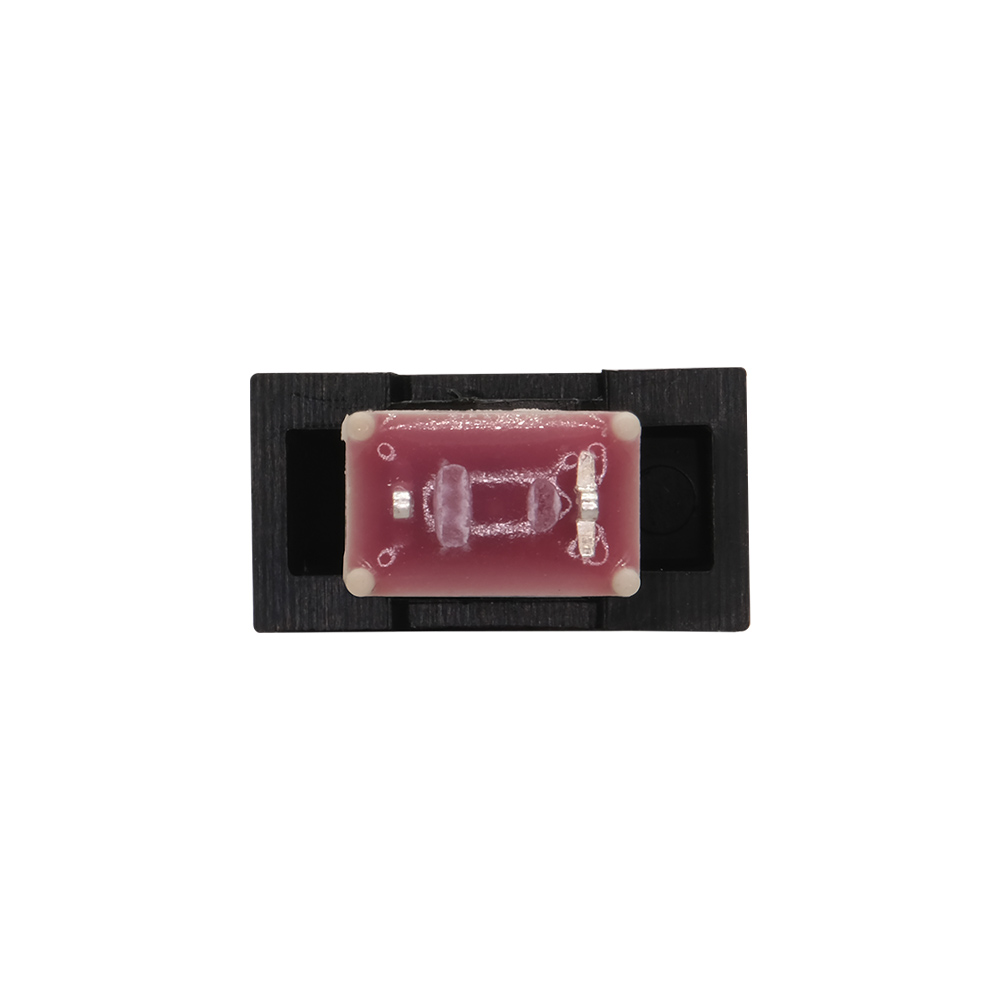

SEALED SUBMINIATURE ROCKER SWITCH
ET27J1CBE2
ActiveLITTELFUSE
SEALED SUBMINIATURE ROCKER SWITCH
Description
General part information
Et0 Series Series
Typically designed into telecommunications equipment, instrumentation or computers and peripherals, the ET series sealed subminiature rocker switch from C&K are resistant to cleaning chemicals and solder – and help designers save space with their small footprints. The ET rocker, bushing and case are all UL 94V-0 rated and RoHS compliant as well.
Technical Specifications
Parameters and characteristics for this part
| Specification | ET27J1CBE2 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) |
| Approval Agency | cULus |
| Circuit | DPDT |
| Color - Actuator/Cap | Black |
| Current Rating | 0.4 VA |
| Electrical Life (Cycles) | 30000 Cycles |
| Features | Sealed, Flux Protection |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Switch Function | On-Off-Mom |
| Termination Style | PC Pin |
| Voltage Rating - AC | 20 V |
| Voltage Rating - DC | 20 V |
