Description
General part information

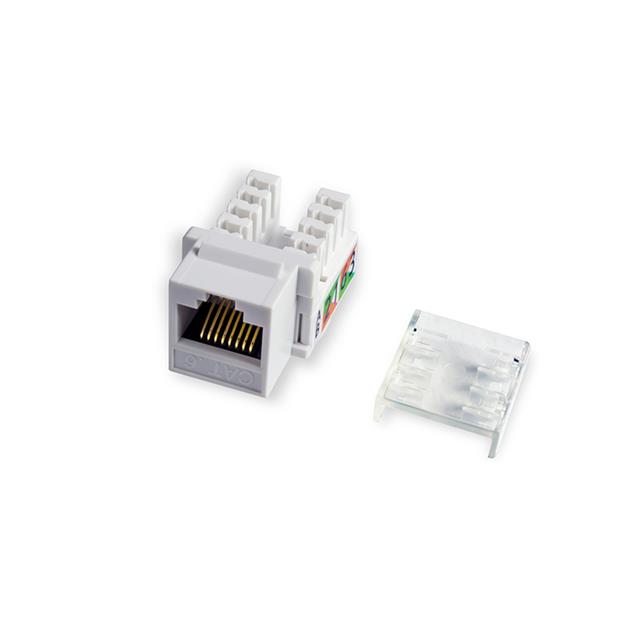

KJ2-8P8C-C6-90-YL
Insert Modular Jack 8p8c (RJ45, Ethernet) To IDC, Pressdown, Punchdown Block Yellow
Technical Specifications
Parameters and characteristics for this part
| Specification | KJ2-8P8C-C6-90-YL |
|---|---|
| Exterior Contact Finish | Gold |
| Exterior Contact Finish Thickness | 50 µin |
| Exterior Contact Material | Phosphor Bronze |
| Exterior Housing Color | Yellow |
| Exterior Housing Material | Acrylonitrile Butadiene Styrene (ABS) |
| Exterior Type (Adapter End) | Modular Jack 8p8c (RJ45, Ethernet) |
| Interior Contact Material | Phosphor Bronze |
| Interior Housing Color | Yellow |
| Interior Housing Material | Polycarbonate (PC) |
| Interior Type (Adapter End) | IDC, Punchdown Block, Pressdown |
| Ratings | Cat6 |
| Style | Modular |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
