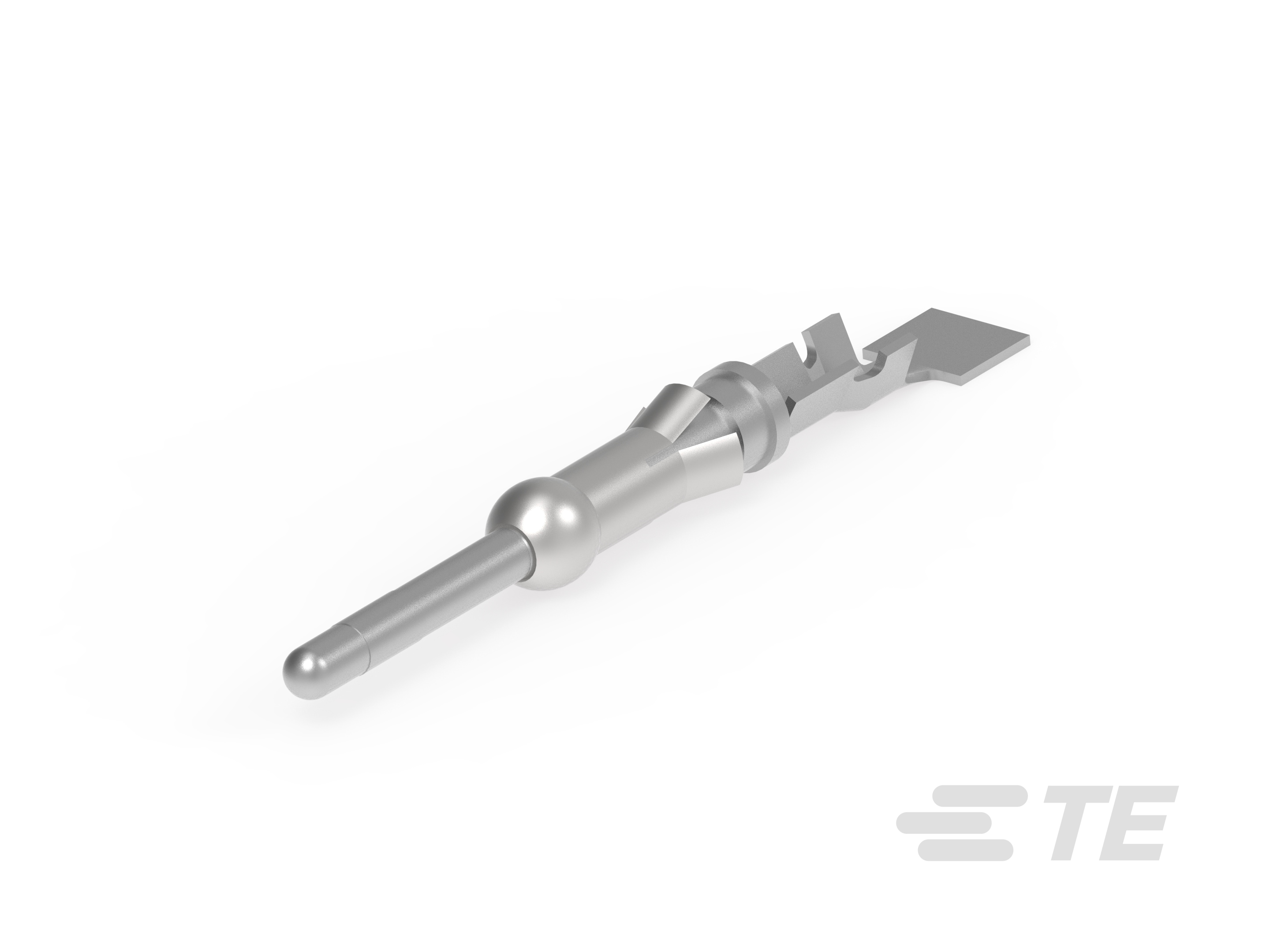

2-66102-6
ActiveTE Connectivity AMP Connectors
III+ PIN,24-20,TIN,STRIP ROHS COMPLIANT: YES
2-66102-6
ActiveTE Connectivity AMP Connectors
III+ PIN,24-20,TIN,STRIP ROHS COMPLIANT: YES
Description
General part information
AMP Type III+ Series
Pin Contact, Tin (Sn), 24 – 20 AWG, .2 – .6 mm² Wire, Crimp, Brass, Power & Signal, -55 – 90 °C [-67 – 194 °F], AMP Type III+
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-66102-6 |
|---|---|
| Contact Finish | Tin |
| Contact Finish Thickness | 50 µin |
| Contact Material | Brass |
| Contact Termination | Crimp |
| Pin or Socket | Pin |
| Type | Stamped |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 19.5 AWG |
